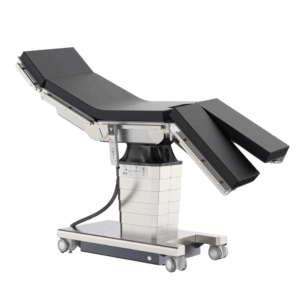

ST500E Surgical Table Platform - 1000 lb Capacity by Infinium Medical

Description

The INFINIUM ST500E Surgical Table is a 1,000 lb capacity table designed from the ground up a as a superior choice for surgery centers. It blends versatility with efficiency and is engineered for today’s dynamic surgical environments while supporting a range of procedures and bringing together healthcare professionals for streamlined, effective surgeries.

Features at a Glance:

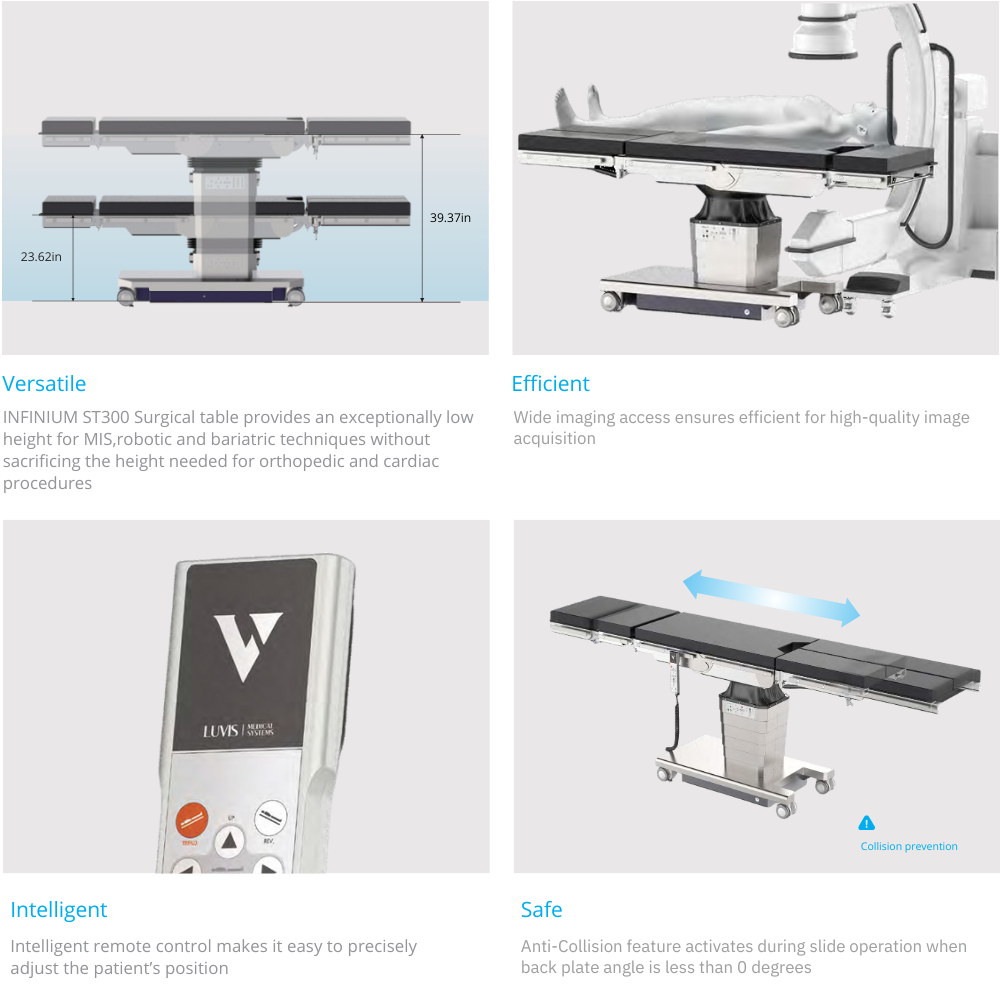

Smart Anti-Collision & One-Click Connections: Ensure safety and ease of operation.
Adjustable Height & Weight Capacity: Accommodates various surgical needs with a table height of 22.83in to 42.52in and a weight capacity of 1,000 lbs.

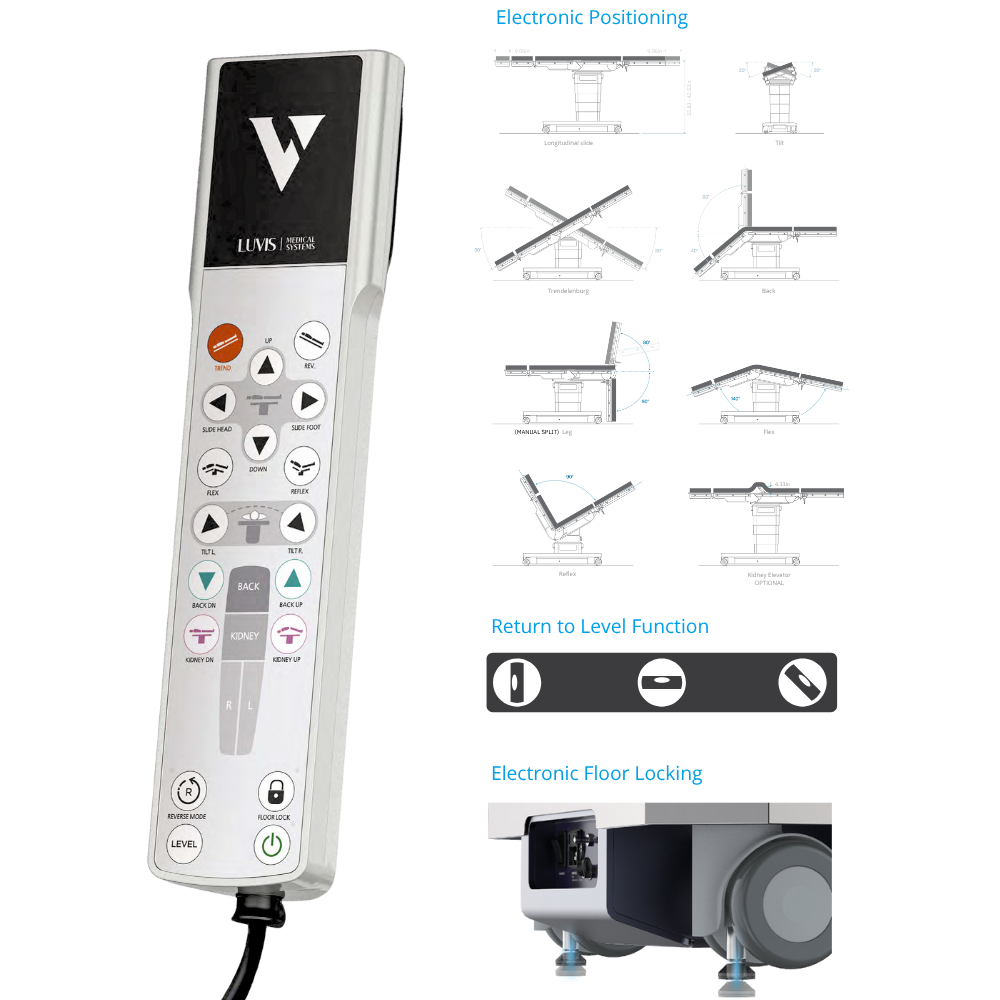

Intelligent Controls: In addition to on-table, it features an intelligent LCD remote displaying real-time information and 4 preset memory positions.
Versatile Positioning for Diverse Surgeries: Optimal for lower limb, orthopedic, spine, gynecology/urology, neuro, and kidney surgeries.
Efficient Usability & Accessory Management: Facilitates quick accessory changes, enhancing operating room efficiency.
Radiolucent Imaging Access: Designed for optimal C-arm access, providing clear, quality images in various modes.
Comfort & Safety: Incorporates a comfortable thick memory foam pad, gas spring headrest adjustments, and smart positioning remote control.
Technical Excellence: Dual power operation, stainless steel & aluminum construction, electrohydraulic adjustments, and extended life batteries.
Solid Leg Section: Comes with standard removable solid leg section. Available split leg option.

Designed for the Modern Operating Rooms

With the INFINIUM ST500E, you’re not just investing in a surgical table; you’re preparing for the future. It offers a kidney elevator option, easy angle manipulation, and features designed to maintain patient safety and comfort. Its intelligent design includes an ergonomic remote for wired and wireless control, intuitive operation displays, quick notifications, and an advanced collision prevention system.

INFINIUM is more than a name; we are commitment to excellence and bringing innovative medical technology to market. Our ST500E Surgical Table reflects our dedication to providing solutions that meet and exceed the demands of modern healthcare while improving the lives of patients around the world.

Versatile Surgical Table Accessories & Attachments

The ST500E has a full catalog of available accessories for a wide variety of procedures. View this catalog in the downloads below. Many of these add-ons are universal and will fit with any standard USA rail table. Visit our surgical table accessories section for more information.

Tech Data

Maximum Overall Load (Patient and Accessories)
- 1,000 lb. (454 kg) patient support, including raise/lower (when centered on the column in Normal Orientation)
- 600 lb. (272 kg) full table articulation, including Slide

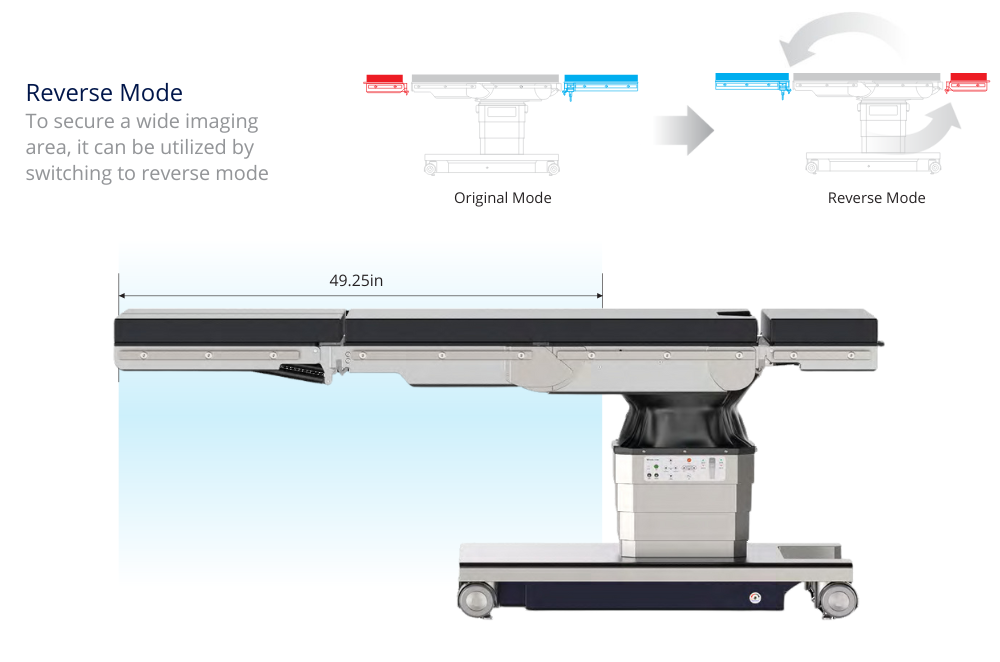

- 350 lb. (159 kg) : Reverse Mode
Power Options: Can operate with internal power and external power. Long life battery.
Battery:
- Specially designed batteries with capacity for two working days’ use in the operating room.
- Electronic monitoring of the battery charge level with optical indicator.
- Batteries recharged from mains power supply, 50–60 Hz, via power supply cord.
Stability: 4-point self-leveling floor locks ensure stable positioning of the table with a fully mechanical emergency brake release.
Materials:
- Column casing and base cover made of stainless steel.
- Supporting frames for the seat section and back section made of aluminum.
- Leg plate sockets, joint covers, and side rails made of stainless steel.

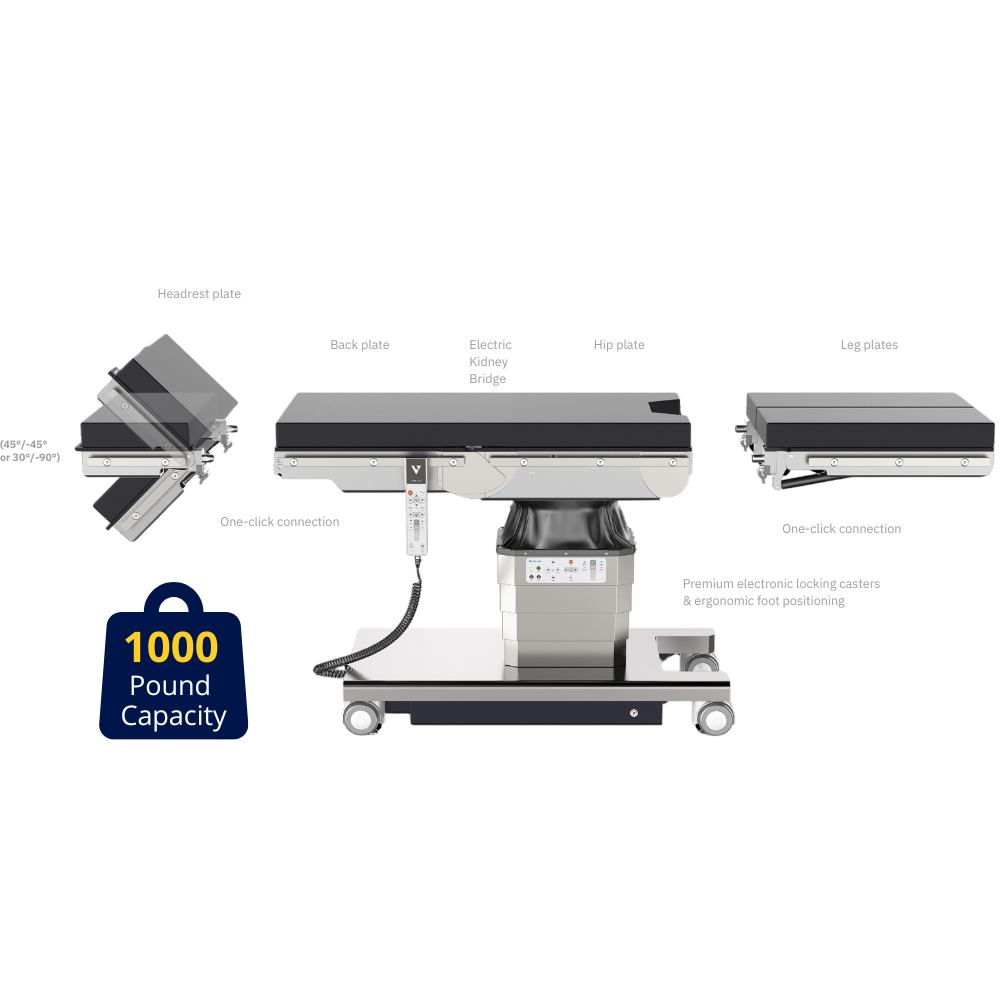

Table Top: Operating table top subdivided into four sections: headrest, back plate, seat plate, leg plates.
Accessory Interfaces: Symmetrical accessory interfaces for Normal and Reverse positioning.
Manual Override: If the electronics or hydraulics fail, an integrated tool can manually unlock the brakes.
Adjustments: Electrohydraulic adjustments via corded hand control, IR hand control, and override panel.

Construction Features Technical Data

Feature	INFINIUM ST500	INFINIUM ST500E
Length of Operating Table Top	85.55 in	85.32 in
Width without Side Rails	20.47 in	20.47 in
Width across Side Rails	22.52 in	22.52 in
Weight	705.48 lb	705.48 lb

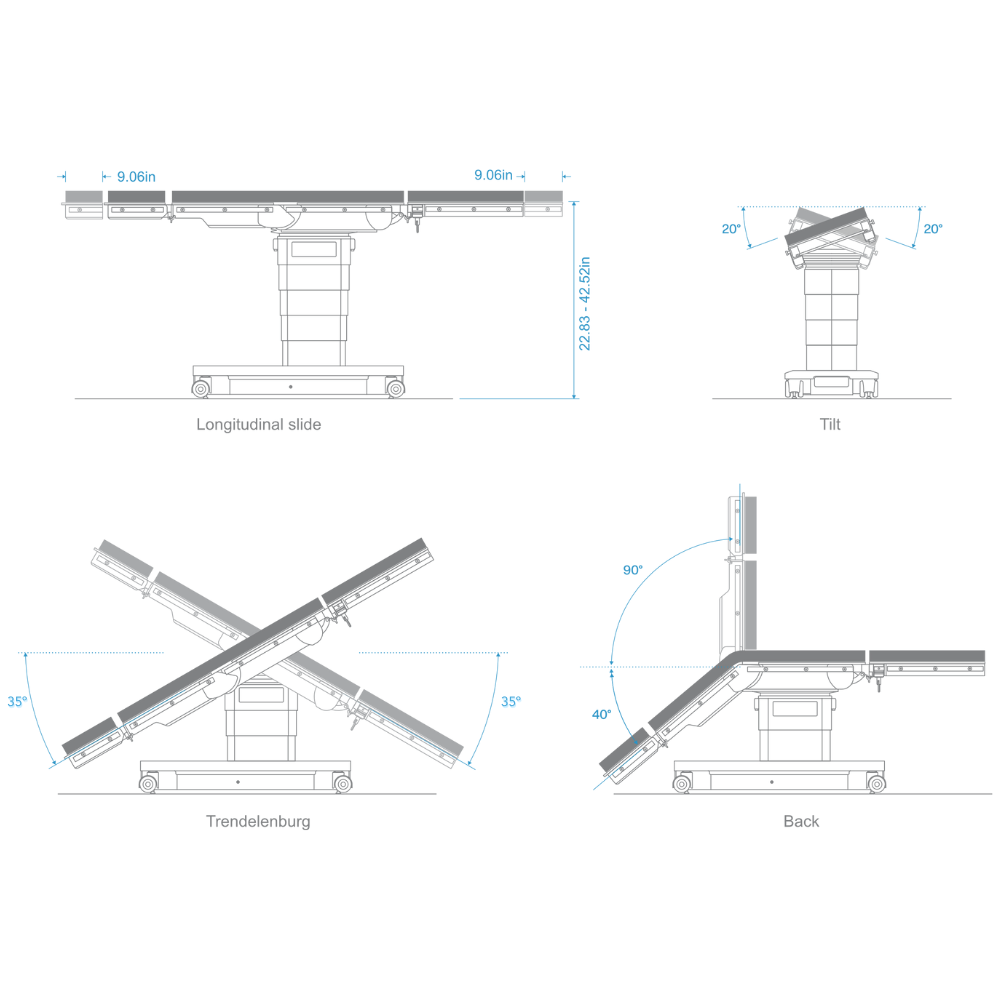

Height without Padding	22.83 – 42.52 in	22.83 – 42.52 in
Trendelenburg / Reverse Trendelenburg	35°/35°	35°/35°
Lateral Tilt	20°	20°
Back Plate	90°/- 40°	90°/- 40°
Leg Plate	10°/- 90° (Manual)	80°/- 90°
Headrest (Manual)	45°/- 45°	45°/- 45°
Longitudinal Slide	18.11 in	18.11 in
Kidney Elevator	4.33 in	4.33 in
Flex/Reflex	140°/90°	140°/90°
Base Brake Mechanism (Lock/Unlock)	Electric	Electric

Safety & Ergonomics

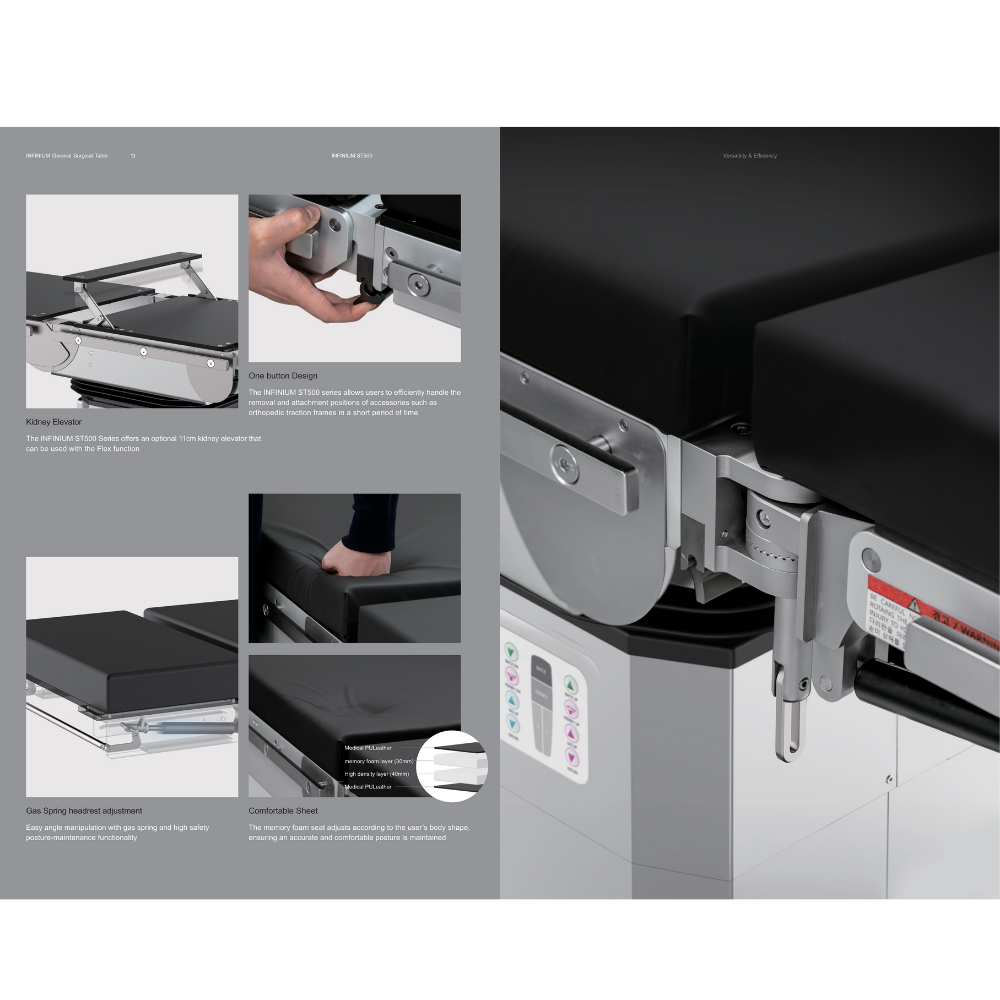

Real World Ergonomics

Imaging Ready

Accessories

Name	Tag	SKU

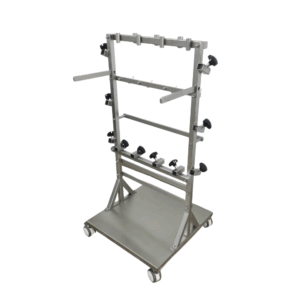

Accessory Trolley – Surgical Table Attachments	None	410.000.0096

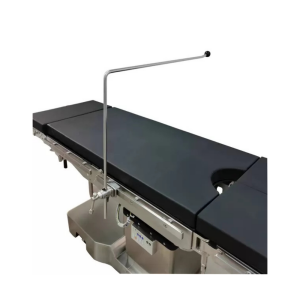

Anesthesia Screen – Surgical Table Attachment	None	410.000.0042

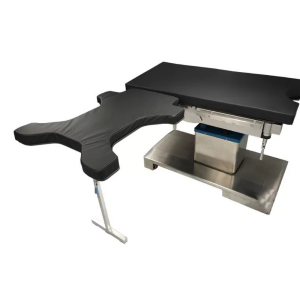

Arm Board – Hand Microsurgery Extension for Surgical Table	Arm Boards	410.000.0009

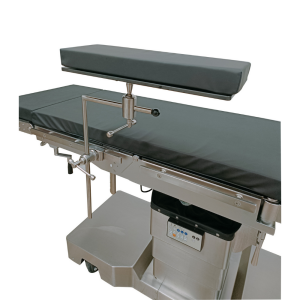

Arm Board – Hanging Universal	Arm Boards	410.000.0082

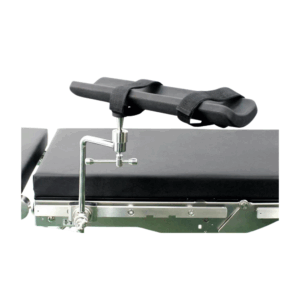

Arm Board – Lateral Position	Arm Boards	410.000.0080

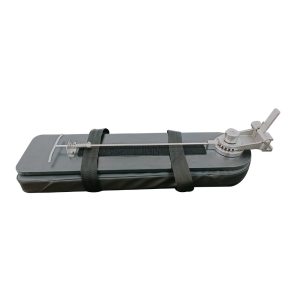

Arm Board – Standard Surgical Table	Arm Boards	410.000.0081
Arm Board – Vertical Three Joint	Arm Boards	410.000.0072

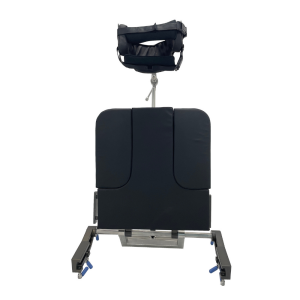

Beach Chair – Surgical Table Module for Shoulder Surgery	Shoulder	410.000.0086

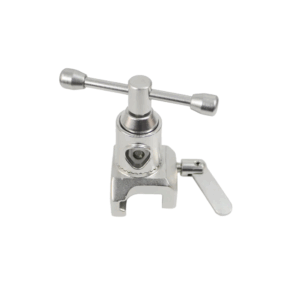

Clamp – Round Clark Socket – Surgical Table Attachment	Clamps

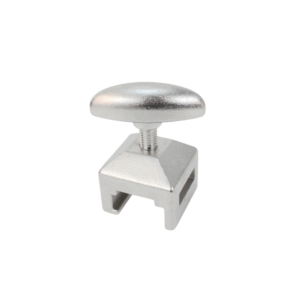

Clamp – Square Siderail – Surgical Table Attachment	Clamps	410.000.0040

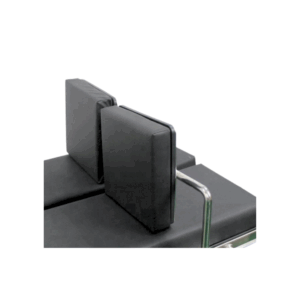

Foot Boards – Surgical Table Foot & Knee Supports	Leg/Knee	410.000.0050
Gel Pad – Intervertebral Disc for Wilson Frame Topper – (Pad Only)	Positioning Pads

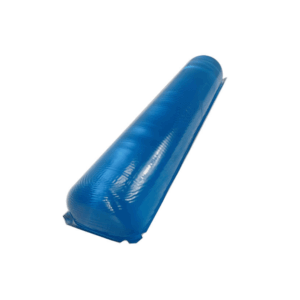

Gel Pad, Abdominal & Chest Roll – Surgery Prone Positioning	Positioning Pads	410.000.0071
Gel Pad, Contoured Arm Tucking – Femoral Condyle – Surgical Positioning	Positioning Pads	410.000.0070

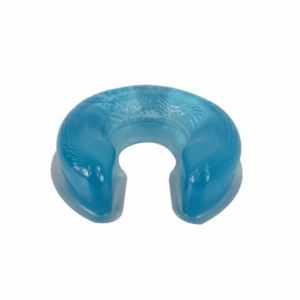

Gel Pad, Headrest Prone – Open Horseshoe Style Positioners	Positioning Pads	410.000.0090

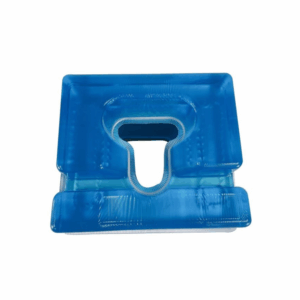

Gel Pad, Headrest Prone – Square	Positioning Pads	410.000.0063-1
Gel Pad, Headrest, Closed Ring – Supine Surgical Positioning	Positioning Pads	410.000.0088
Gel Pad, Knee, Leg, Ankle – Surgical Positioning	Positioning Pads	410.000.0092

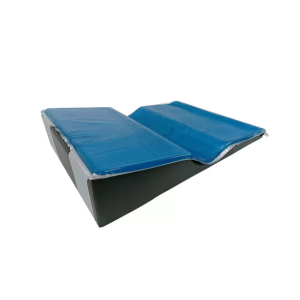

Gel Pad, Lateral – Surgical Positioning	Positioning Pads

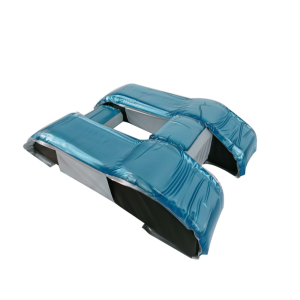

Gel Pad, Prone Chest & Pelvic Table Positioning	Positioning Pads	410.000.0043

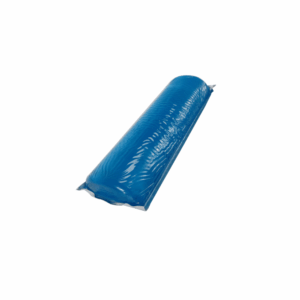

Gel Pad, Rounded – General Surgery Positioning	Positioning Pads	410.000.0094

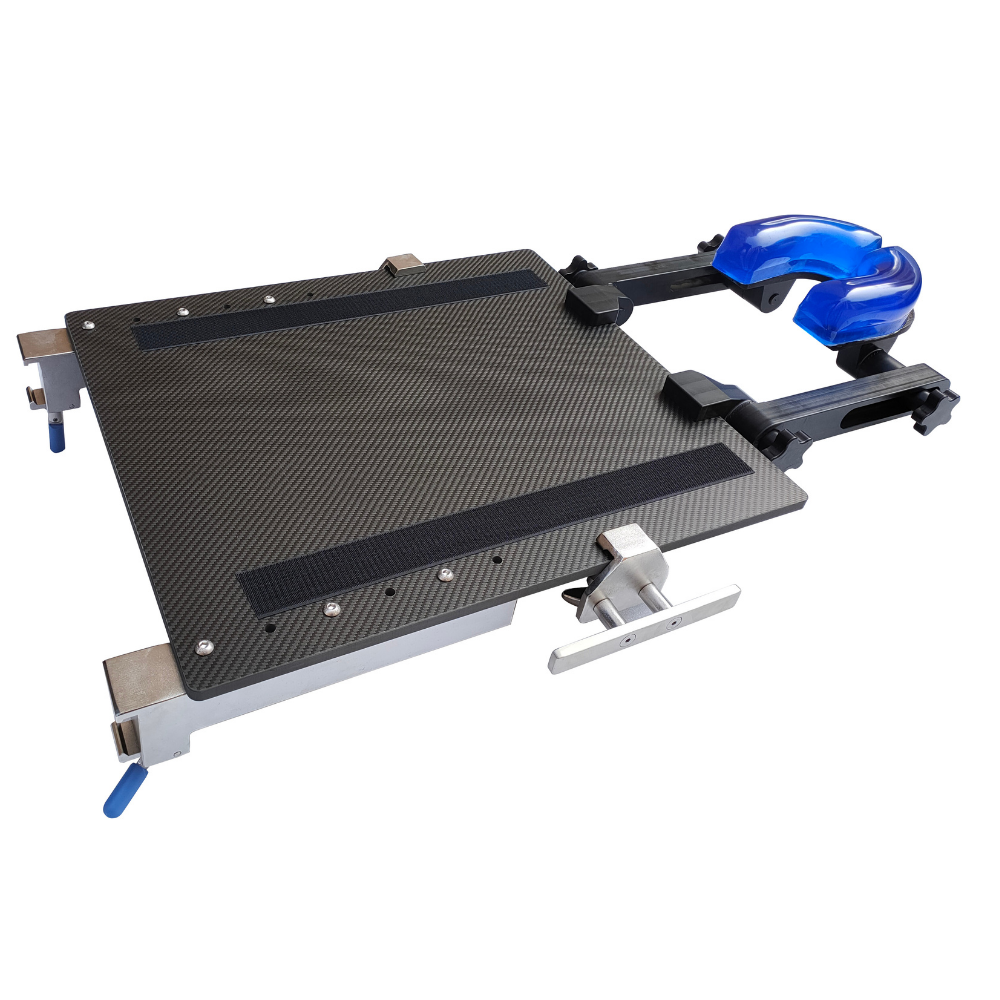

Head Stabilizer – Carbon Fiber Prone Table Head Attachment	Head	410.000.0019-1

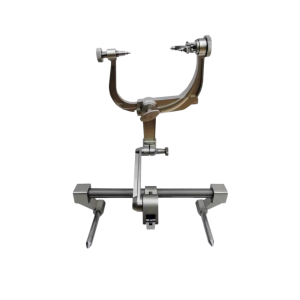

Head Stabilizer – Mayfield Style Craniocerebral Head Attachment	Head	410.000.0019
IV Pole – Surgical Table Attachment	None	410.000.0053
Jackson Spine Table	None

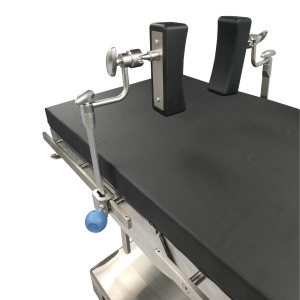

Lateral Supports – Light Upper Body & Lumbar Attachments	Lateral Support	410.000.0083-1
Lateral Supports – Universal Orthopedic & Neurosurgical	Lateral Support	410.000.0084
Lateral Supports – Waist & Pelvic Table Arm Attachment	Lateral Support	410.000.0083

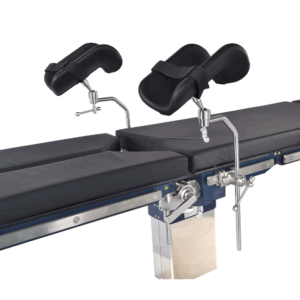

Leg Holders – Arthroscopic Total Knee Support	Leg/Knee	410.000.0021

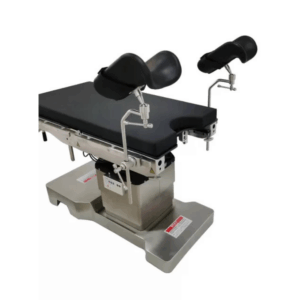

Leg Holders – General Use Knee Support	Leg/Knee	410.000.0021-1

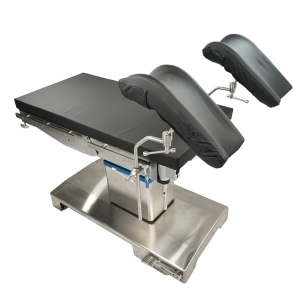

Leg Holders – Large General Surgery Leg Holder	Leg/Knee	410.000.0021-2
Leg Holders – Stirrups Blue Pneumatic Lithotomy Style	Leg/Knee

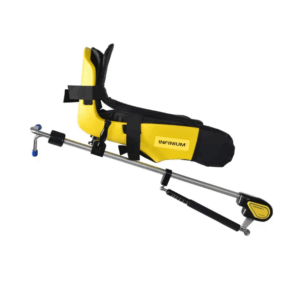

Leg Holders – Stirrups Yellow Cystoscopy / Candy Cane Style	Leg/Knee
Ophthalmic Hand Frame / Support	Head
Protective sleeve for ST500 Remote	None	410.000.0095
Remote Control for ST500 table	None	410.000.0067
Restraint Strap – Arm – (Set of 2)	Restraint Straps	410.000.0054

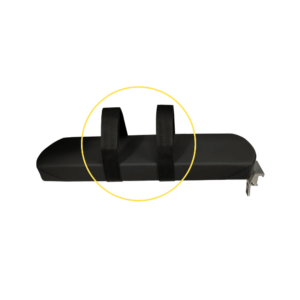

Restraint Strap – Forearm – Surgery (comes individually)	Restraint Straps	410.000.0078

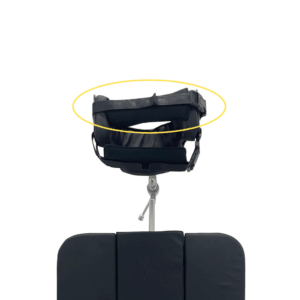

Restraint Strap – Head – Surgery	Restraint Straps	410.000.0076

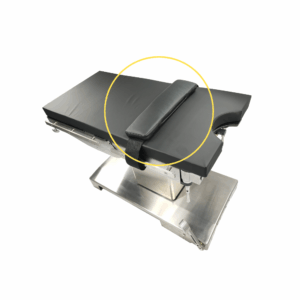

Restraint Strap – Leather Body – Safety Belt	Restraint Straps	410.000.0069-1
Restraint Strap – Leg – Surgery	Restraint Straps	410.000.0077

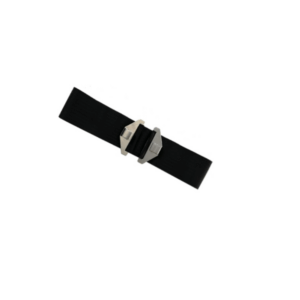

Restraint Strap – Safety Belt	Restraint Straps	410.000.0069
Safety/Positioning Accessory	None

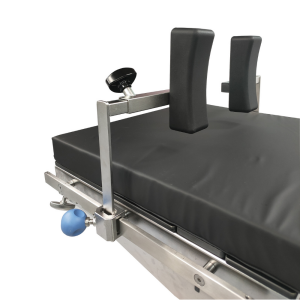

Shoulder Supports – Orthopedic Table Attachment	Shoulder	410.000.0041

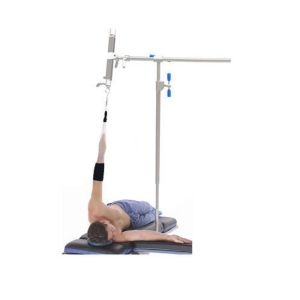

Shoulder Traction – Lightweight Orthopedic Frame Kit	Shoulder, Spine Traction	410.000.0074
Spinal Frame – Carbon Fiber Orthopedic Table Module	Spine Traction	410.000.0087

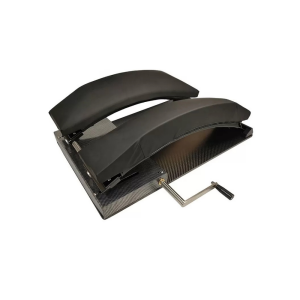

Spine Frame: Carbon Wilson Style	Spine Traction	410.000.0022
Traction Frame – Orthopedic Carbon Fiber & Stainless	Spine Traction	410.000.0065

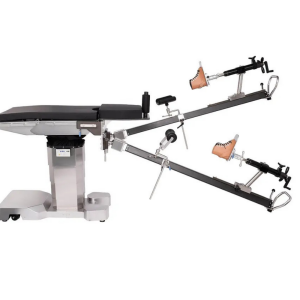

Traction Frame – Orthopedic Hana Style	Spine Traction
Waste Tray	None	410.000.0032
