Description

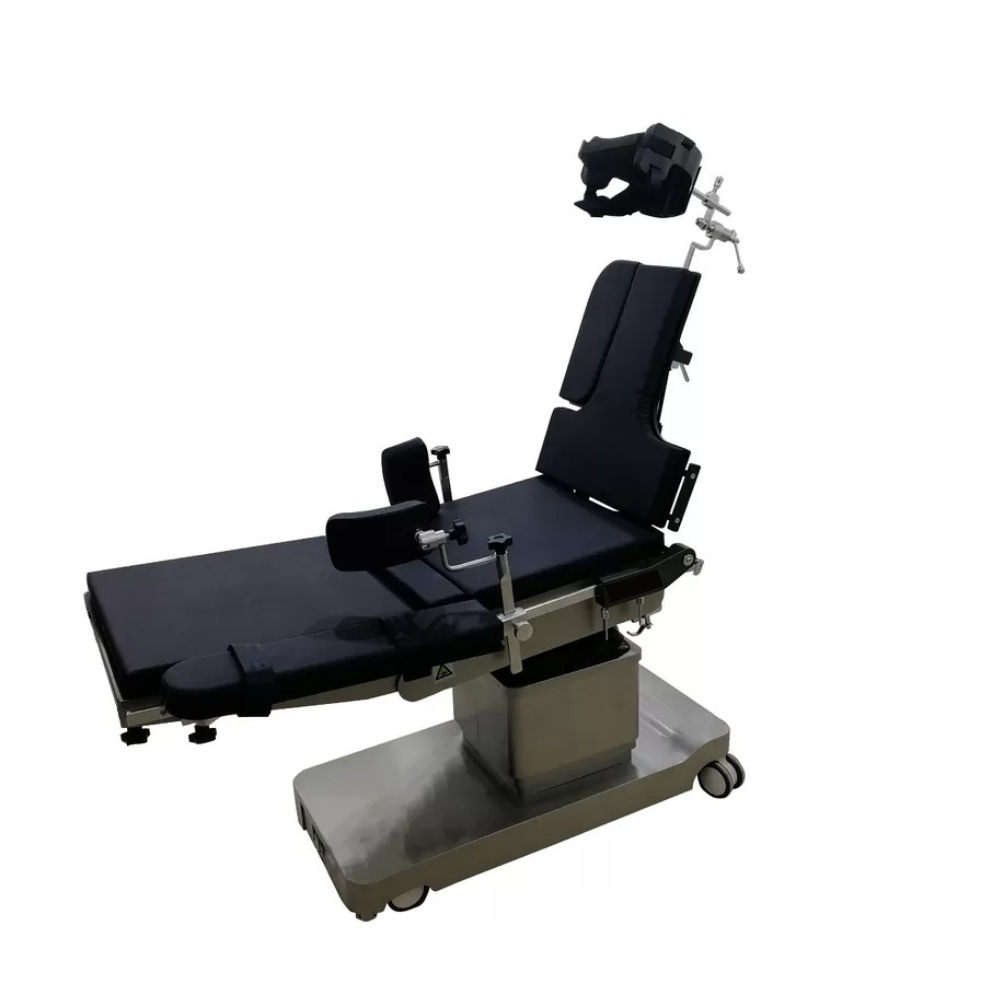

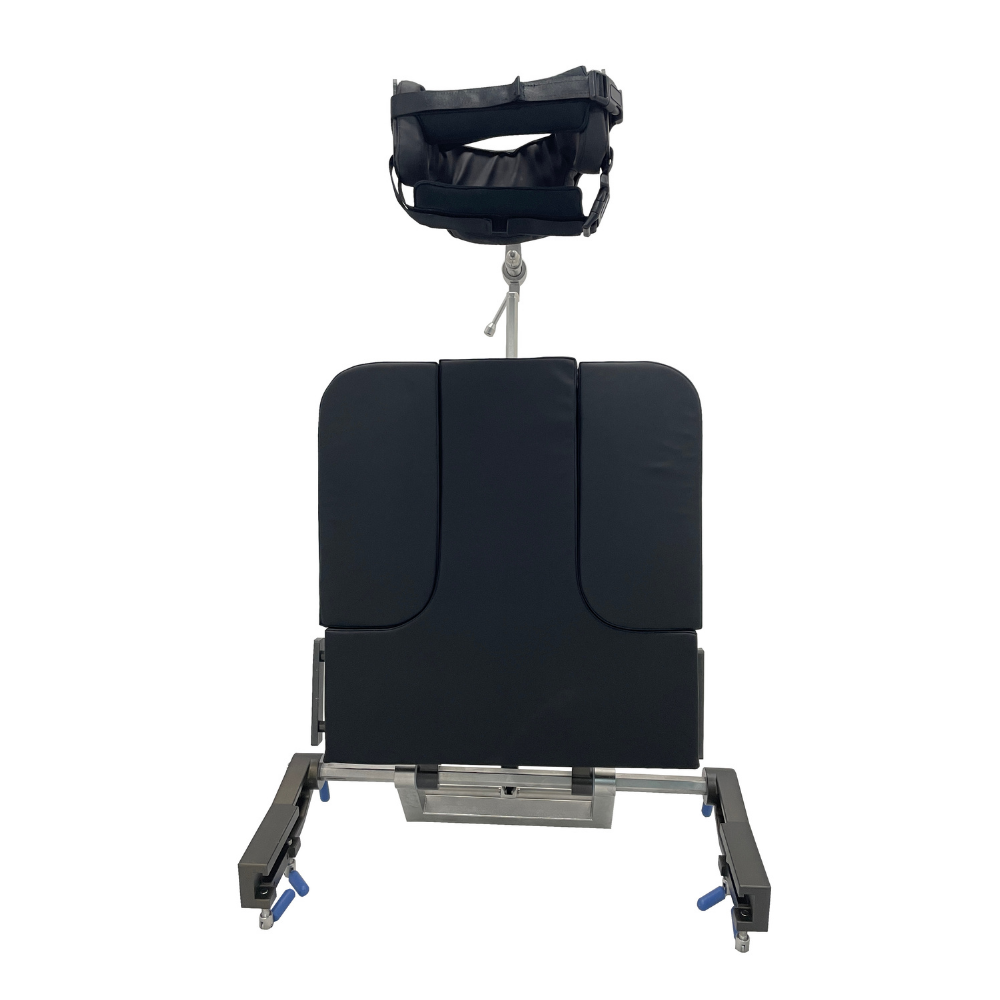

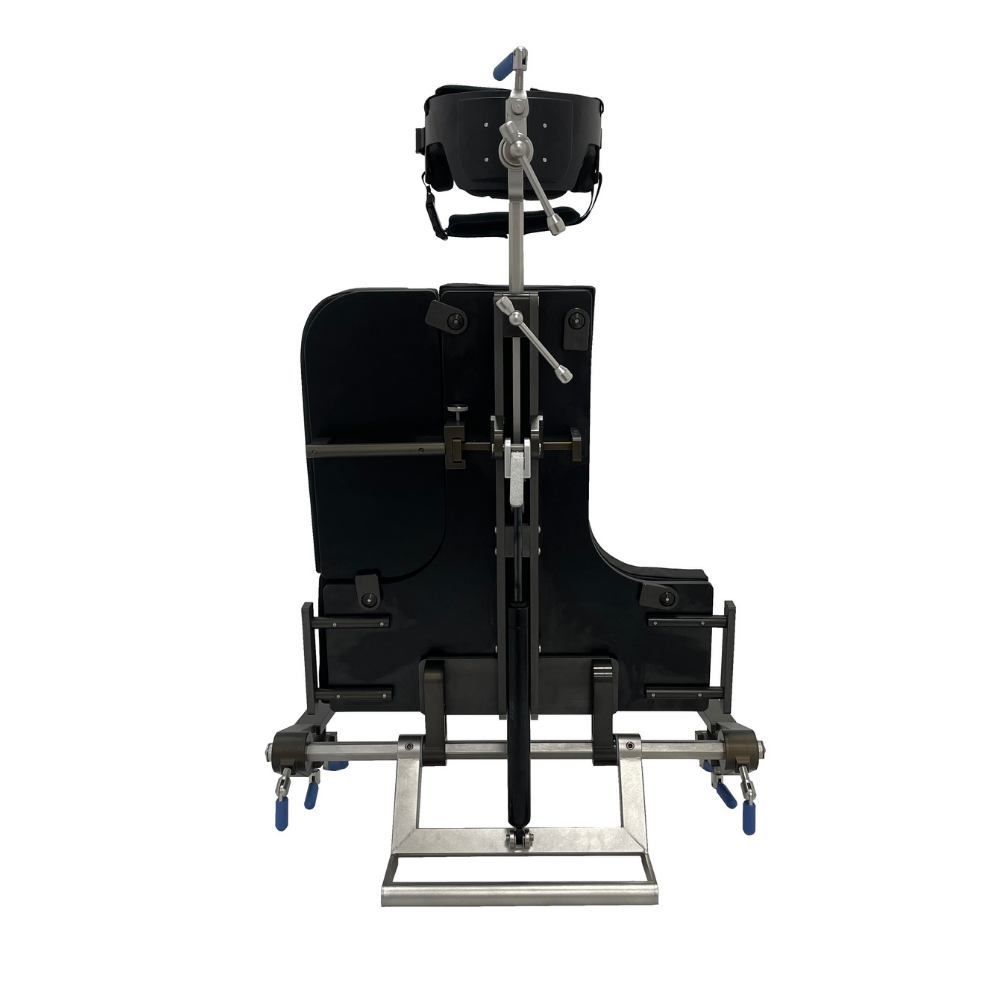

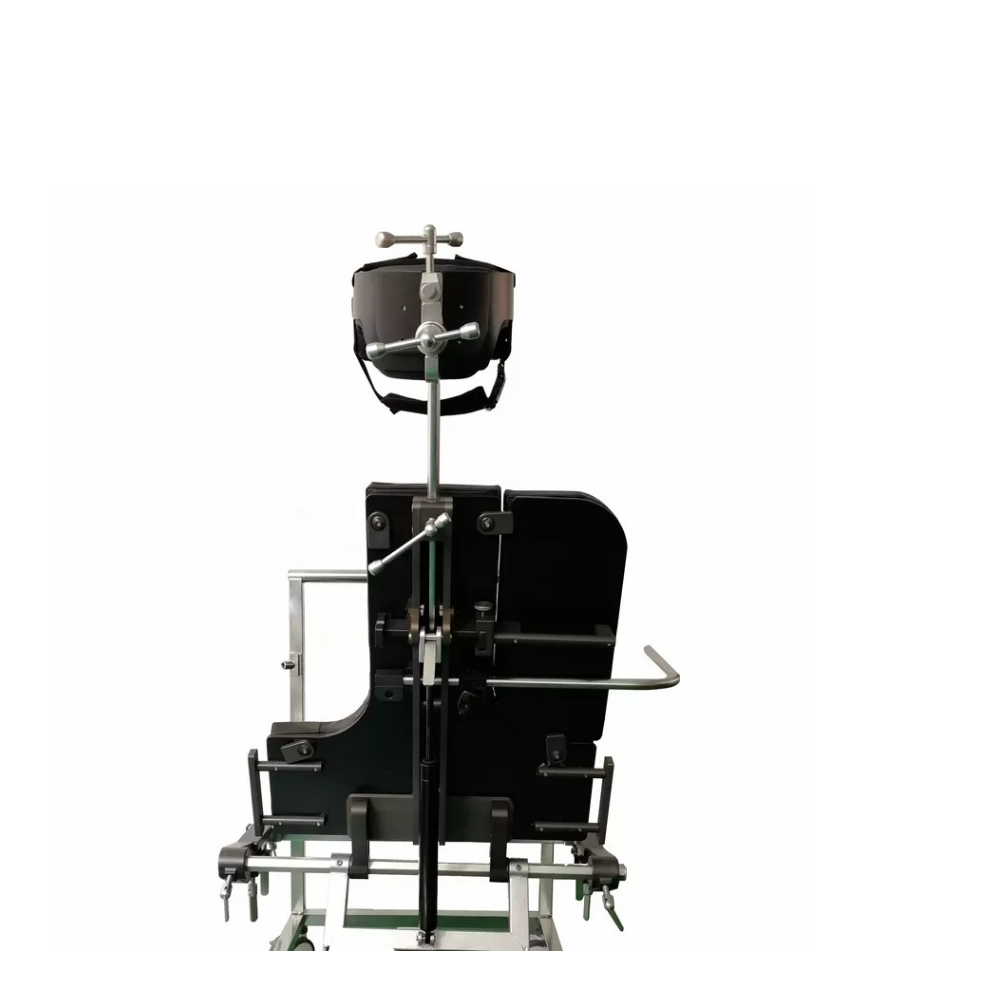

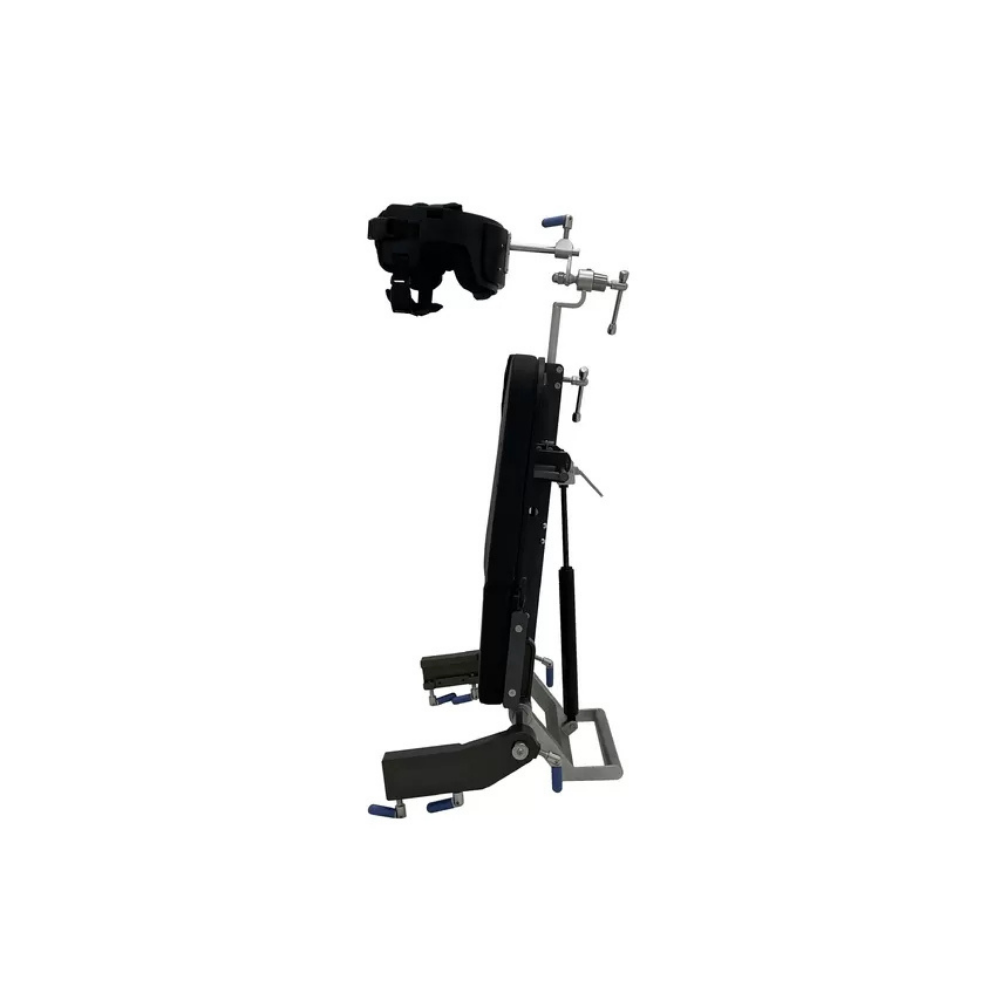

Beach Chair Module/Shoulder Frame

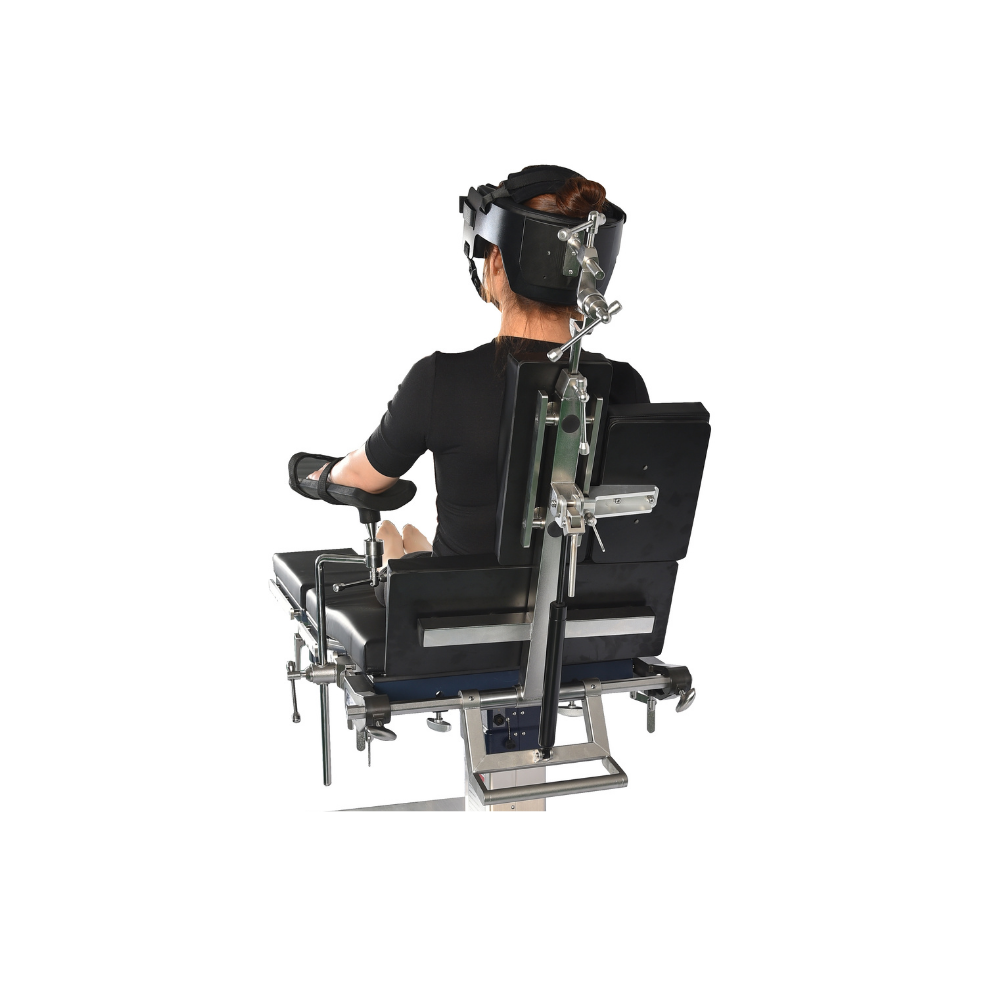

Specialized for shoulders and upper extremities, this “Beach Chair” positioning system is often utilized for arthroscopic shoulder procedures, rotator cuff repairs, shoulder reconstructions, and other orthopedic interventions requiring elevated arm access and stable upper body positioning for enhanced surgical visibility and maneuverability. It features a robust frame with adjustable backrest and integrated headrest for precise alignment, constructed from 304 stainless steel and aluminum alloy for corrosion resistance and ease of use. The module attaches to standard operating table side rails via compatible clamps, with options for specific rail dimensions to ensure universal fit across brands. No maximum load capacity is specified in available product documentation.
Technical Specifications
- For shoulder procedures in beach chair position
- Rail options: 30 mm x 8 mm (1.18 in x 0.31 in) or 28.5 mm x 9.5 mm (1.12 in x 0.37 in)
- Backrest angle range of -15° to +80°
- Headrest extension of 0–320 mm (0–12.60 in) for customized patient positioning.
- Overall dimensions are 520 mm x 580 mm (20.47 in x 22.83 in)
- Suitable for operating tables with widths of 500–600 mm (19.69–23.62 in).
