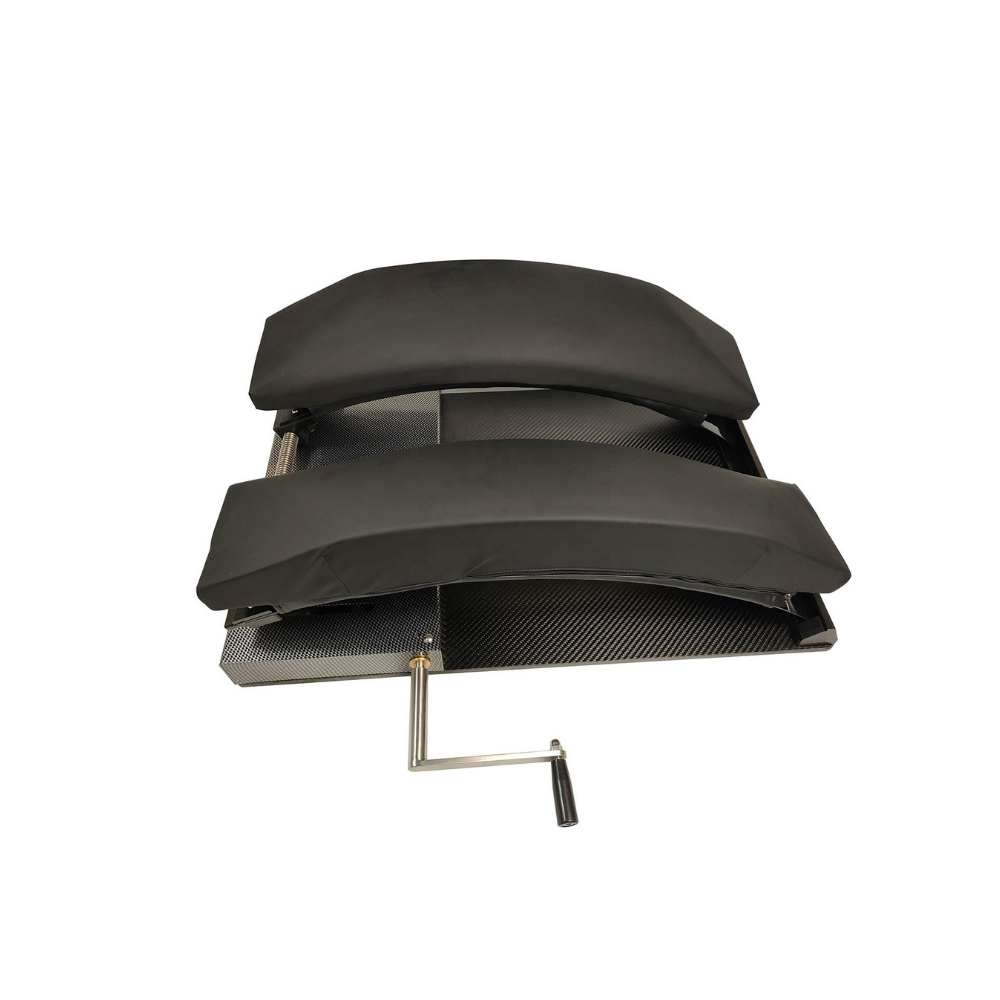

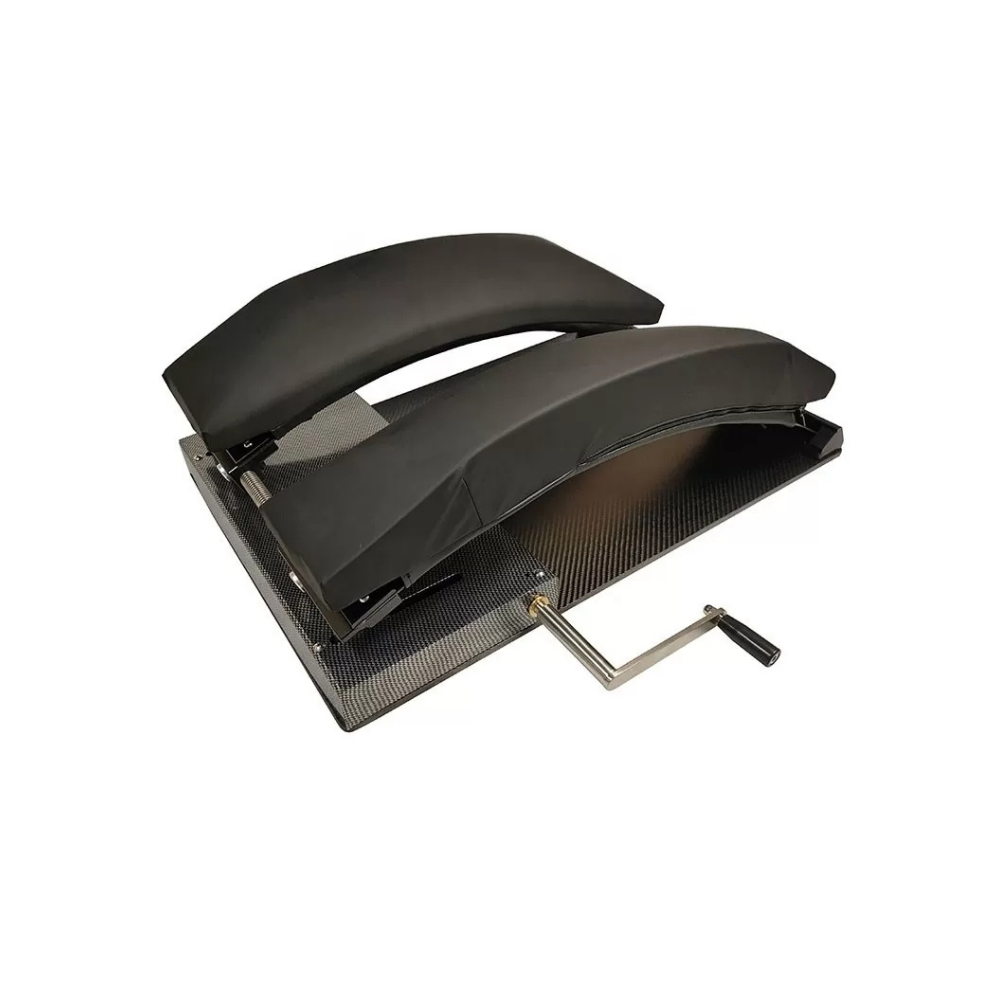

Wilson Style Spinal Frame for Surgical Table

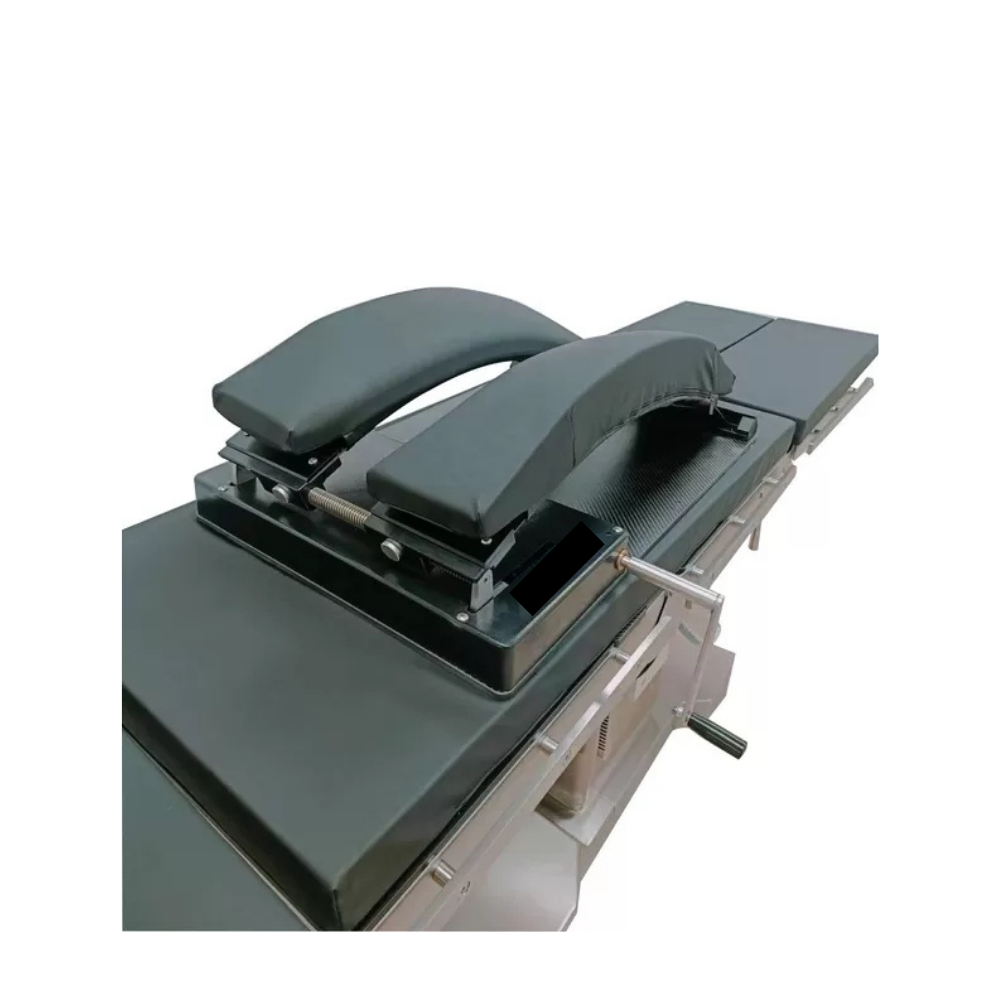

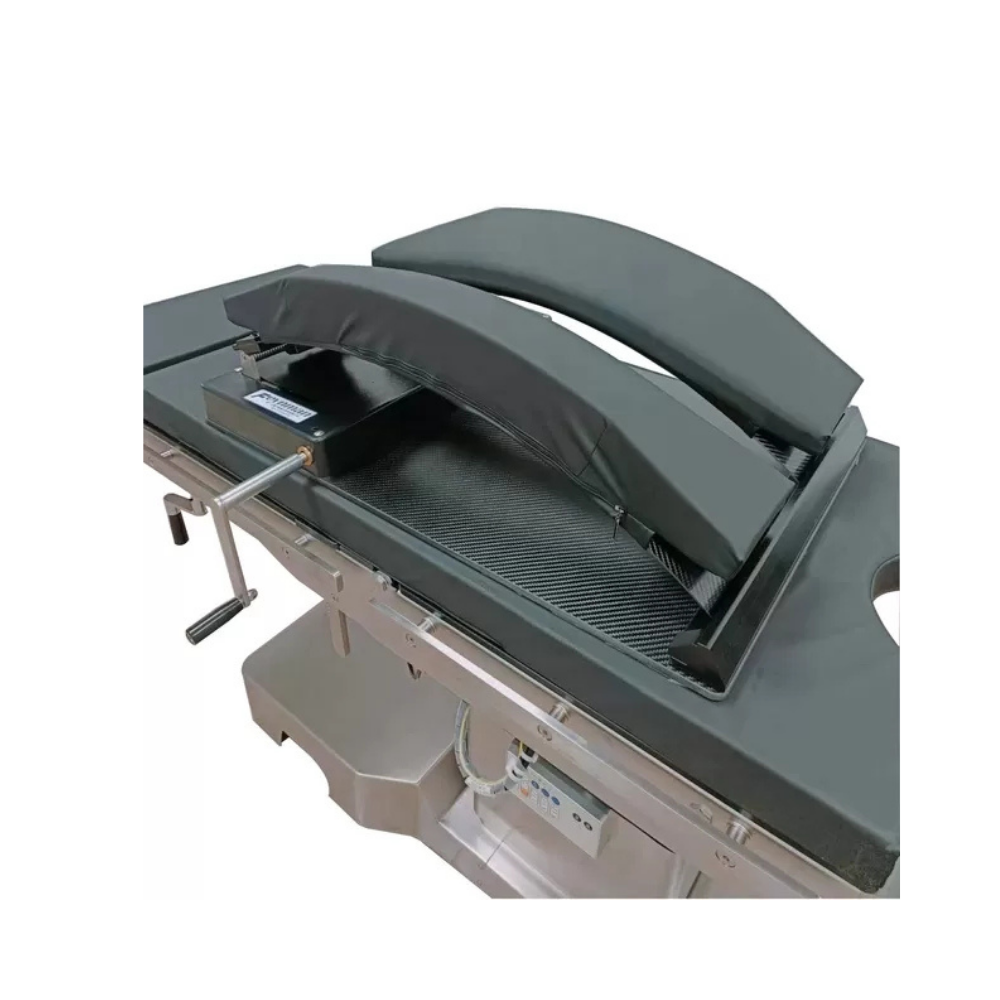

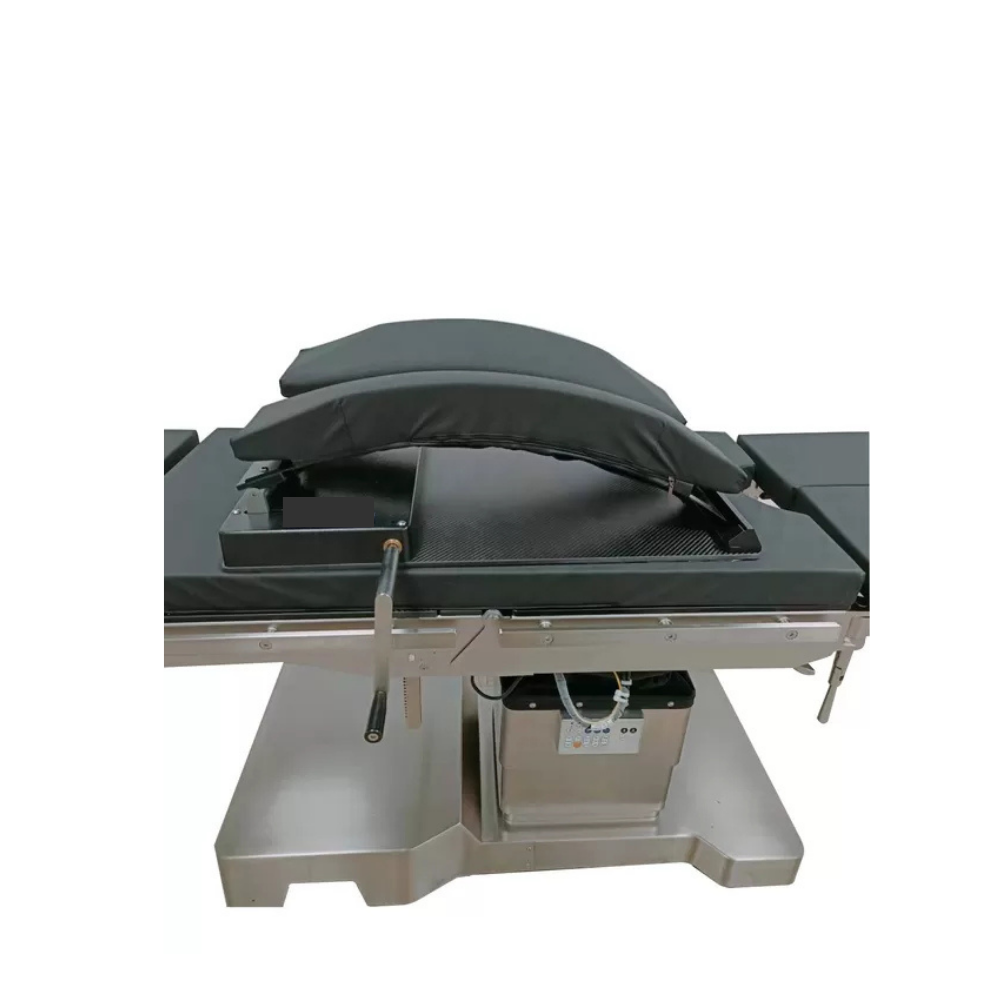

The carbon fiber spine frame is designed for imaging-compatible surgery, offering high durability. Variants are similar to OSI Wilson Frame or Allen Bow Frame. This is a specialized operating table accessory designed for optimal patient positioning during spinal surgeries in prone or lateral configurations. Key applications include laminectomy, spinal fusion, discectomy, and other orthopedic/neurosurgical procedures requiring stable support, reduced pressure on the abdomen and chest, and unobstructed fluoroscopic imaging for precise intraoperative visualization. It features a radiolucent carbon fiber construction with a curved frame profile to maintain spinal lordosis and facilitate ventilation, covered in high-quality PU leather with soft sponge cushions to prevent pressure sores and enhance patient comfort. Built with high-strength 304 stainless steel supports for durability and corrosion resistance, it includes an adjustable lifting handle for effortless patient transfer and positioning. The frame attaches to standard operating tables via universal rail clamps for broad compatibility across brands and provides a stable four-point contact system while allowing easy disassembly for cleaning and sterilization.
Technical Specifications
- Material: Carbon fiber
- Variant: Similar to OSI Wilson Frame or Allen Bow Frame
- Height range: 250–330 mm (9.84–12.99 in)
- Bilateral spacing: 0–250 mm (0–9.84 in) for customized fit
- Overall dimensions: 750 mm x 500 mm x 250–330 mm (29.53 in x 19.69 in x 9.84–12.99 in)
