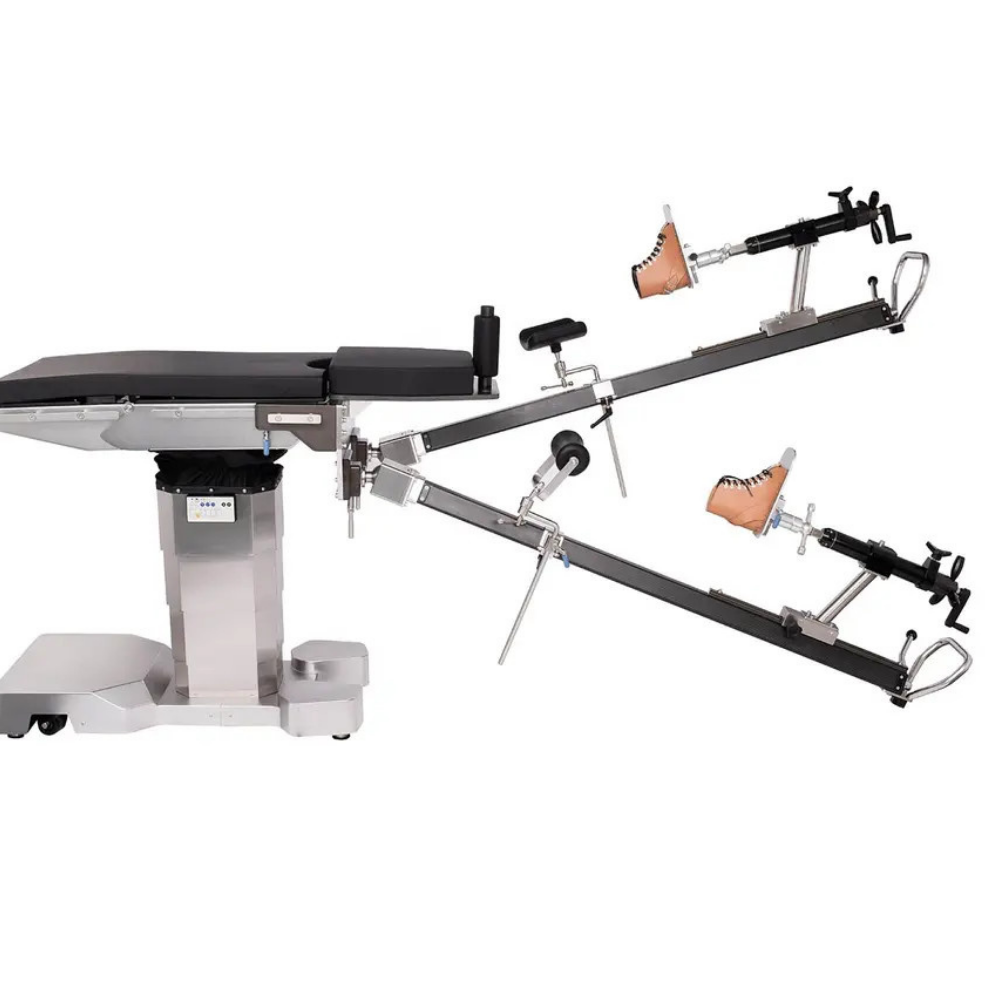

Hana Style Orthopedic Table Traction Frame Attachment
The Hana Style Orthopedic Traction Frame is a specialized operating table attachment designed for precise lower limb traction and positioning during orthopedic procedures. Key applications include hip fractures, femoral surgeries, and other lower extremity interventions requiring controlled extension and alignment for optimal surgical access and imaging. It features a double-pole structure with 3 different boot sizes for versatile patient fit, constructed from lightweight carbon fiber for durability and reduced radiation interference. The frame attaches to standard operating tables via universal compatibility across brands.
Technical Specifications
- Supports hip hyperextension/abduction/adduction/rotation.
- Adjustable height
- 3 boot sizes
- 360° rod angle rotation, outer rod extension of ≥45°, and inner rod extension of ≥20° for customized traction
- Rods total length of 2050 mm (80.71 in), prospective length of 1600 mm (62.99 in), and base plate size of 650 mm x 450 mm x R70 mm (25.59 in x 17.72 in x 2.76 in),
- Maximum load of 180 kg (396.83 lb).
