Description

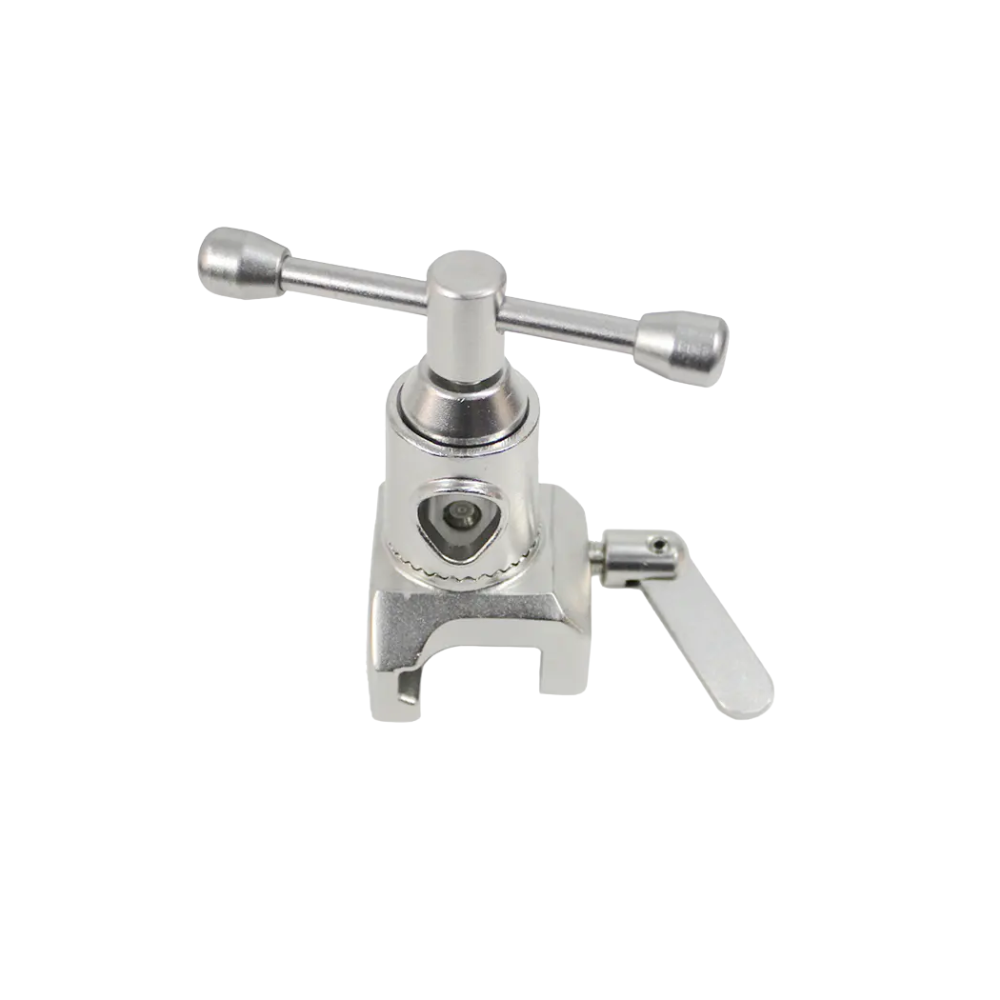

The Universal Clark Socket Clamp is a versatile, dual-function surgical accessory engineered for secure attachment of operating room instruments and supports directly to surgical table side rails ( USA rails standard unless specified ). Crafted from high-grade 304 stainless steel for corrosion resistance and durability, it accommodates both round posts and flat bar-style accessories, enabling precise positioning and stability during procedures. Its innovative design allows for quick snap-on attachment at any point along the rail—without needing end notches or standoffs—while a positive locking T-handle mechanism provides full angular control and reliable hold. Fully autoclavable, it supports efficient workflow in high-pressure environments by facilitating easy adjustments and repositioning. This clamp is primarily used to mount auxiliary surgical supports, including arm boards, stirrups, IV poles, anesthesia screens, trays, and leg holders, to the side rails of operating tables. By stabilizing these components parallel to the rail, it enhances patient positioning, instrument accessibility, and overall procedural safety across routine and complex operations.
Specifications
- Accessory Compatibility: Accepts round posts up to 19 mm (0.75 inch) in diameter; flat bars up to 6.35 mm x 25.4 mm (0.25 inch x 1 inch).
- Rail Attachment: Clips securely onto standard surgical table side rails with a robust, rocking clamp mechanism for 360-degree rotation and locking.
- Material: 304 stainless steel.
- Circular Hole (for posts): 19 mm (0.75 inch) diameter.
Available Variations
The clamp is available in configurations tailored to common international surgical table rail profiles, ensuring broad compatibility:
- USA (Standard/Default): Fits rails measuring 28.5 mm x 9.5 mm (1.125 inches x 0.375 inches).
- European: Fits rails measuring 25 mm x 10 mm (0.984 inches x 0.394 inches).
- UK: Fits rails measuring 31.75 mm x 6.35 mm (1.25 inches x 0.25 inches).
Additionally, length variations exist for extended reach applications, including a classic short-arm model and a long-arm model for greater offset from the rail.
