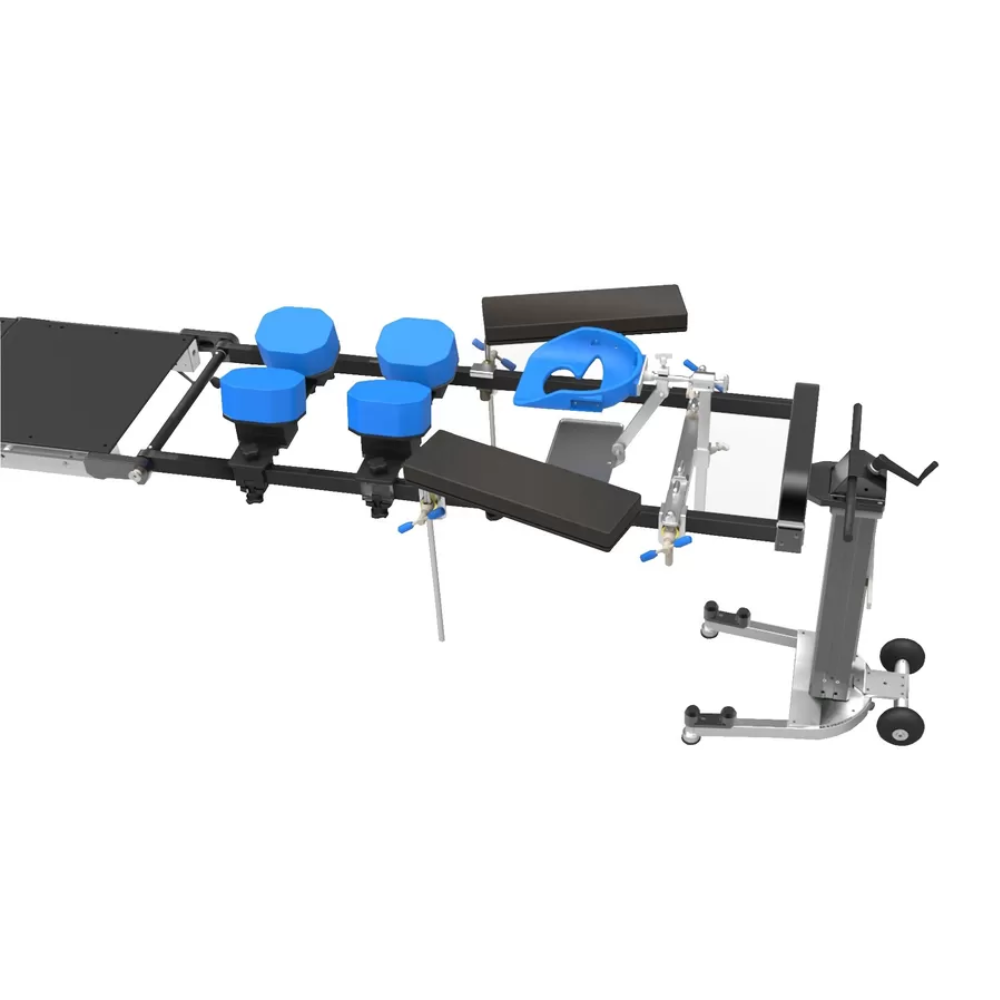

Spinal Frame – Carbon Fiber Orthopedic Table Module

Spinal Frame – Carbon Fiber Orthopedic Table Module

This is a imaging friendly carbon fiber operating table accessory designed for optimal patient positioning and imaging during spinal procedures. Key applications include spine surgeries such as laminectomies, fusions, and discectomies, as well as cervical traction requiring unobstructed C-arm, G-arm, or O-arm fluoroscopy for precise intraoperative visualization. It features a radiolucent carbon fiber frame and support bracket for shadow-free imaging, with a memory sponge headrest equipped with a reflector to monitor patient facial expression and intubation status.

SKU: 410.000.0087 Category: Tag:

Share This Item :

Description

Carbon Fiber Spine System Module for Surgical Table

This is a specialized operating table accessory designed for optimal patient positioning and imaging during spinal procedures. Key applications include spine surgeries such as laminectomies, fusions, and discectomies, as well as cervical traction requiring unobstructed C-arm, G-arm, or O-arm fluoroscopy for precise intraoperative visualization. It features a radiolucent carbon fiber frame and support bracket for shadow-free imaging, with a memory sponge headrest equipped with a reflector to monitor patient facial expression and intubation status. Constructed from carbon fiber for lightweight durability and full X-ray transparency, the module includes a manually adjustable lifting column that links with the operating table’s left/right tilt for seamless integration. The module attaches via fixed clamps with adjustable spacing for universal compatibility across any operating table brand. The frame is adjustable and foldable for easy storage.

Technical Specifications

  • Material: Carbon fiber
  • Size: 57.09 x 19.69 x 30.71-46.46 inches (1450 x 500 x 780-1180 mm)
  • Maximum Load: 485 lbs (220 kg)
  • Fixed Clamp Size: 0.98 x 0.39 inches (25 x 10 mm)/1.18 x 0.31 inches (30 x 8 mm)/1.12 x 0.37 inches (28.5 x 9.5 mm)/1.26 x 0.35 inches (32 x 9 mm)
  • Fixed Clamp Spacing Distance: 20.47-25.59 inches (520-650 mm)
  • Features: Full imaging compatibility, manual adjustment, memory sponge head rest with reflector
