Lateral Supports – Universal Orthopedic & Neurosurgical

Lateral Supports – Universal Orthopedic & Neurosurgical

Universal support for lateral positioning in surgical procedures.

SKU: 410.000.0084 Category: Tag:

Share This Item :

Description

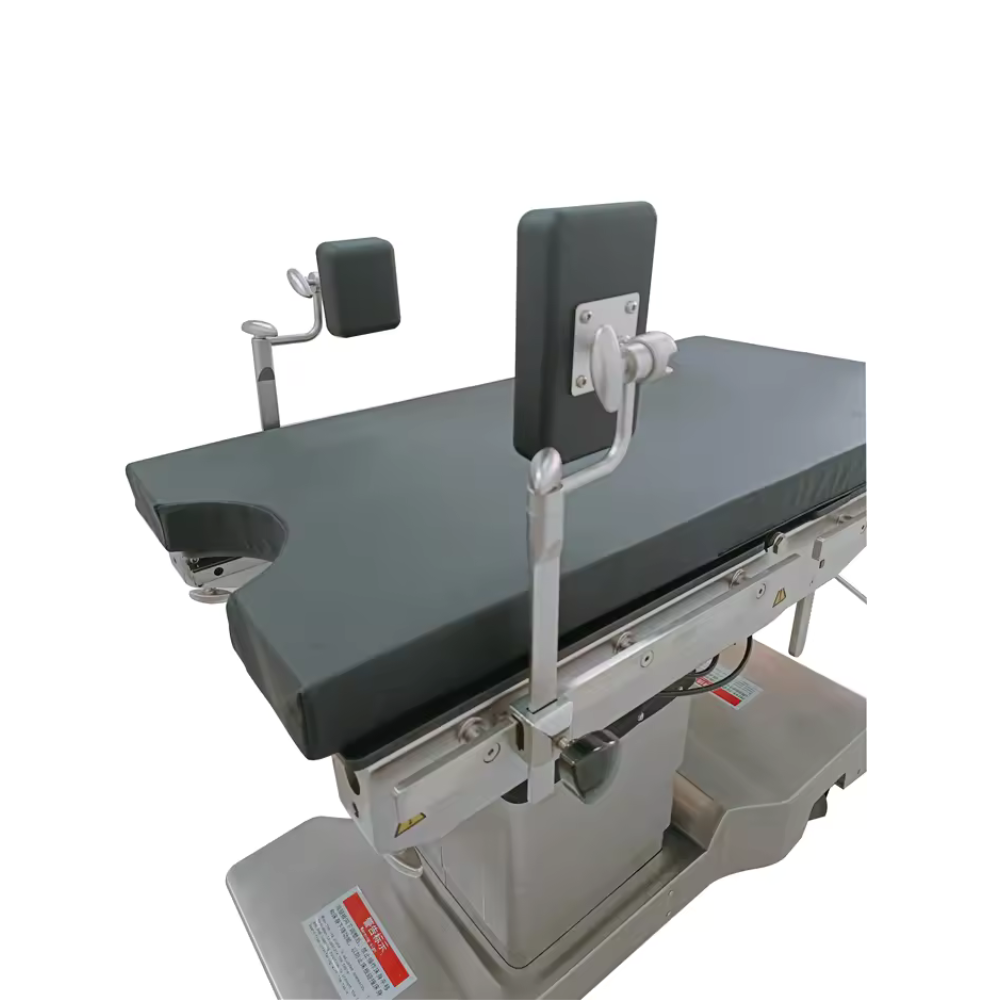

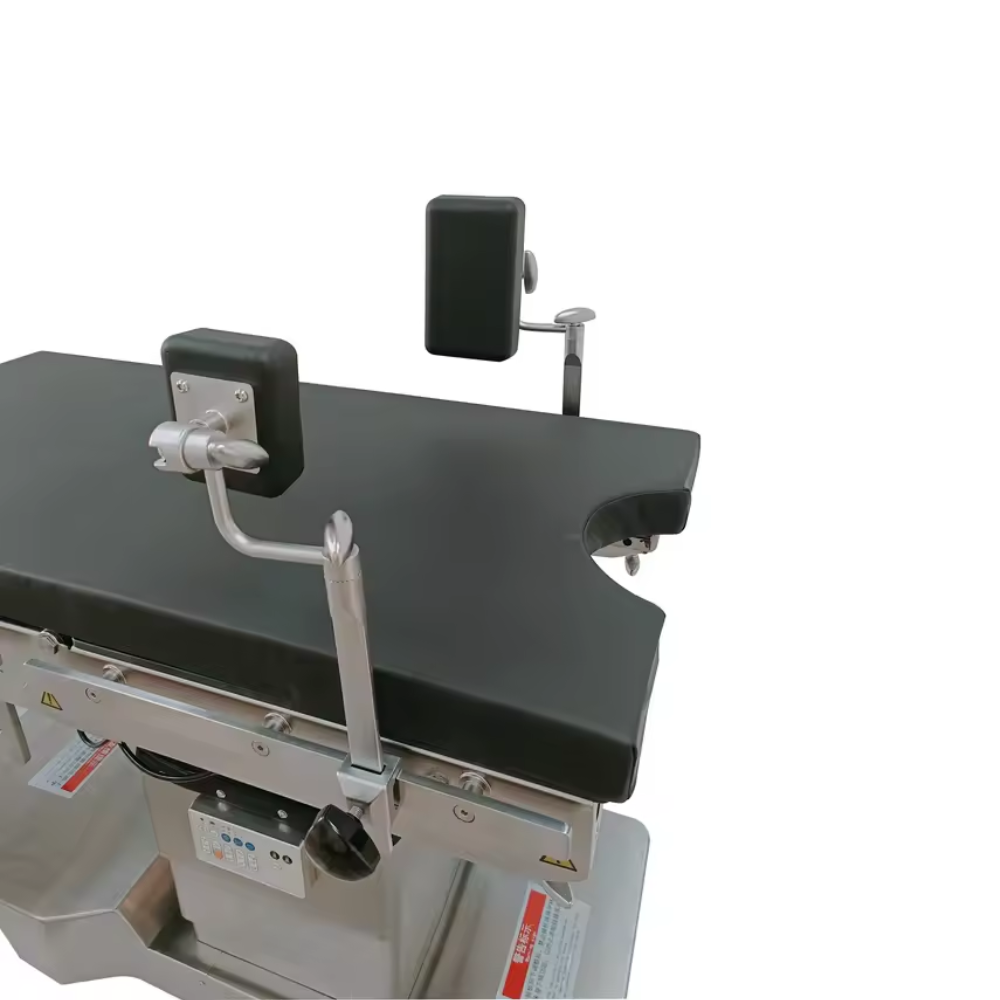

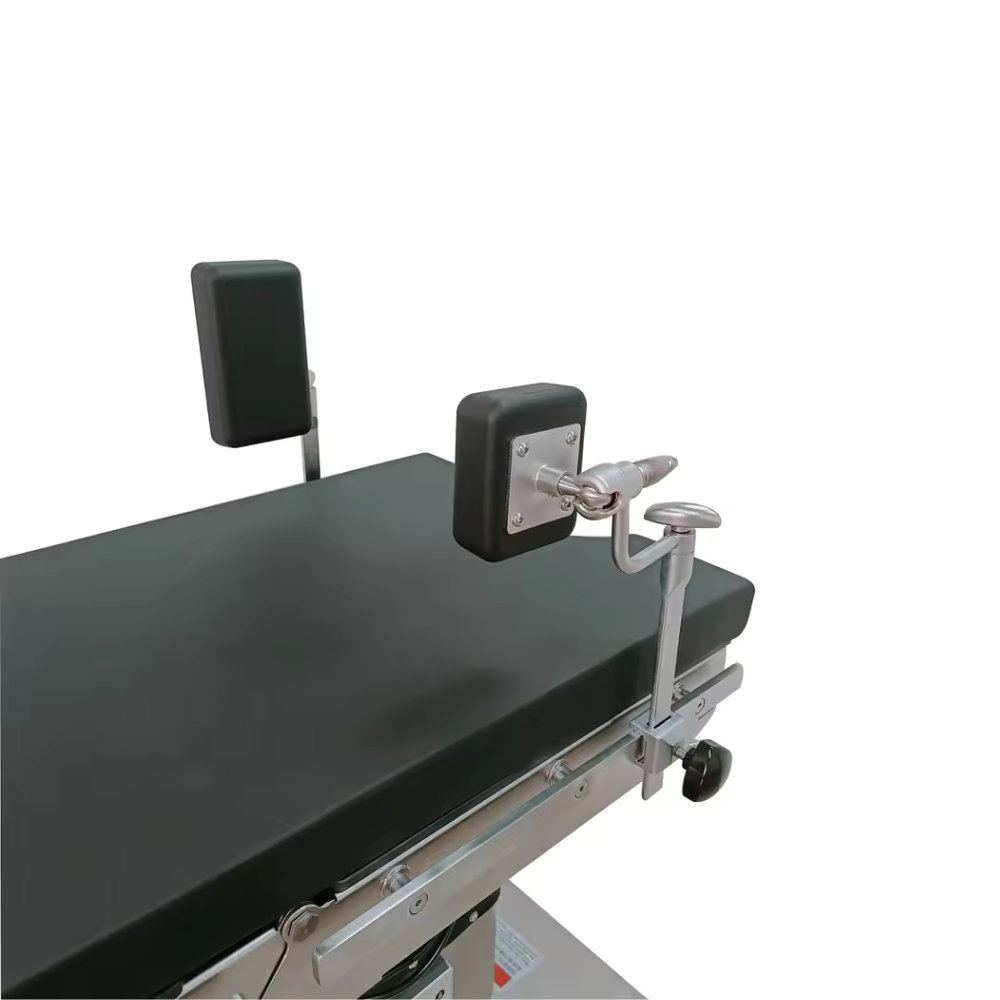

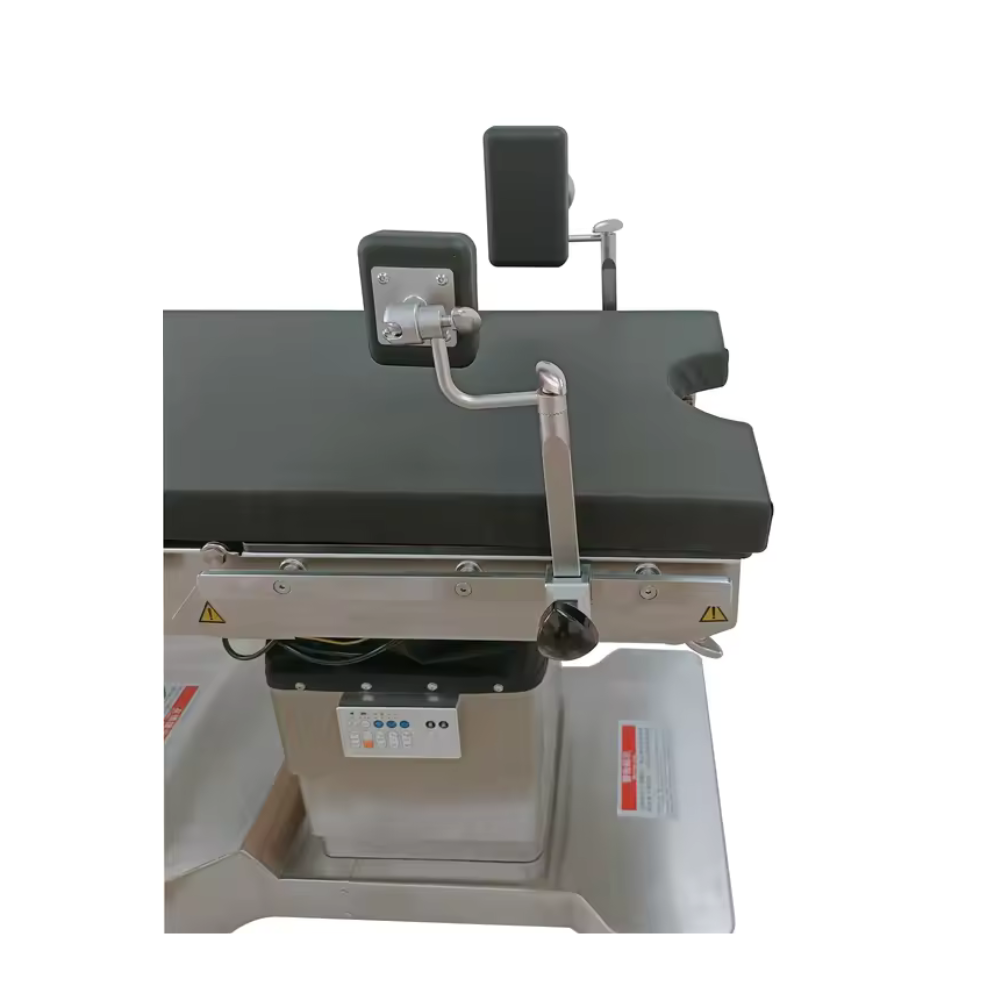

Universal Lateral Support Arms & Pads

These general lateral table supports are designed for secure patient stabilization. Key applications include lateral lumbar surgeries, orthopedic procedures, and neurosurgical interventions requiring reliable side support to maintain alignment and prevent slippage. It features adjustable brackets with polyurethane memory foam padding for patient comfort and pressure distribution, constructed from 304 stainless steel for durability, corrosion resistance, and easy sterilization. The bracket attaches to standard operating table side rails for universal compatibility across brands. Adjustments allow for customizable height and angle to fit various patient sizes and procedural needs.
Please specify your pad sizes from below.

Technical Specifications

  • Bracket size: of 25 mm x 6 mm (0.98 in x 0.24 in)
  • Height (adjustable by 200 mm / 7.87 in) and maximum lateral range of 230 mm (9.06 in) to fit various patient sizes.
  • Pad sizes:
    • Large:  200 mm x 120 mm (7.87 in x 4.72 in)
    • Medium:  120mm x 100mm (4.72 in x 3.94 in)
    • Small:  80mm x 80mm (3.15 in x 3.15 in)
    • Round:  130mm (5.12 in)
