The INFINIUM ST300 Surgical Table is a 1,000 lb capacity table designed as an affordable and compact entry into the ST series, offering reliable performance for surgery centers. It combines versatility with efficiency and is built to support a variety of procedures in modern surgical settings, enabling healthcare teams to deliver streamlined and effective care.“Ideally priced for budget-conscious facilities while maintaining the quality and essential features of the premium ST series surgical tables.”The ST300 is engineered as a more compact and cost-effective alternative to higher-end models like the ST500, without compromising on core functionality.

Share This Item :

Description

The INFINIUM ST300 Surgical Table is a 1,000 lb capacity table designed as an affordable and compact entry into the ST series, offering reliable performance for surgery centers. It combines versatility with efficiency and is built to support a variety of procedures in modern surgical settings, enabling healthcare teams to deliver streamlined and effective care.“Ideally priced for budget-conscious facilities while maintaining the quality and essential features of the premium ST series surgical tables.”The ST300 is engineered as a more compact and cost-effective alternative to higher-end models like the ST500, without compromising on core functionality. This platform delivers exceptional value, making it a competitive choice for facilities seeking dependable surgical solutions at an accessible price point.

Description

The INFINIUM ST300 Surgical Table is a 1,000 lb capacity table designed as an affordable and compact entry into the ST series, offering reliable performance for surgery centers. It combines versatility with efficiency and is built to support a variety of procedures in modern surgical settings, enabling healthcare teams to deliver streamlined and effective care.

Features at a Glance:

  • Anti-Collision & One-Click Connections: Provides safety during operations and simplifies accessory attachment.
  • Adjustable Height & Weight Capacity: Supports diverse needs with a table height of 22.83in to 42.52in and a weight capacity of 1,000 lbs.
  • Intelligent Controls: Features an ergonomic wired remote for precise adjustments and real-time battery level monitoring.
  • Versatile Positioning for Diverse Surgeries: Ideal for spine, orthopedic, lower limb, neuro, gynecology/urology, and optional kidney surgeries.
  • Efficient Usability & Accessory Management: Allows quick handling of accessories like orthopedic traction frames, improving operating room workflow.

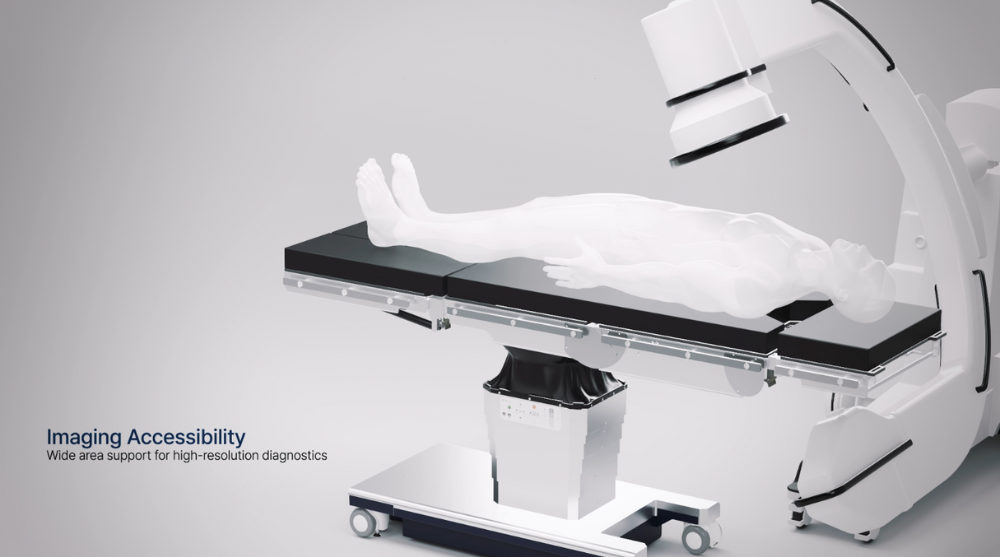

  • Radiolucent Imaging Access: Offers wide imaging area with reversible configurations for optimal C-arm compatibility and high-quality image acquisition.

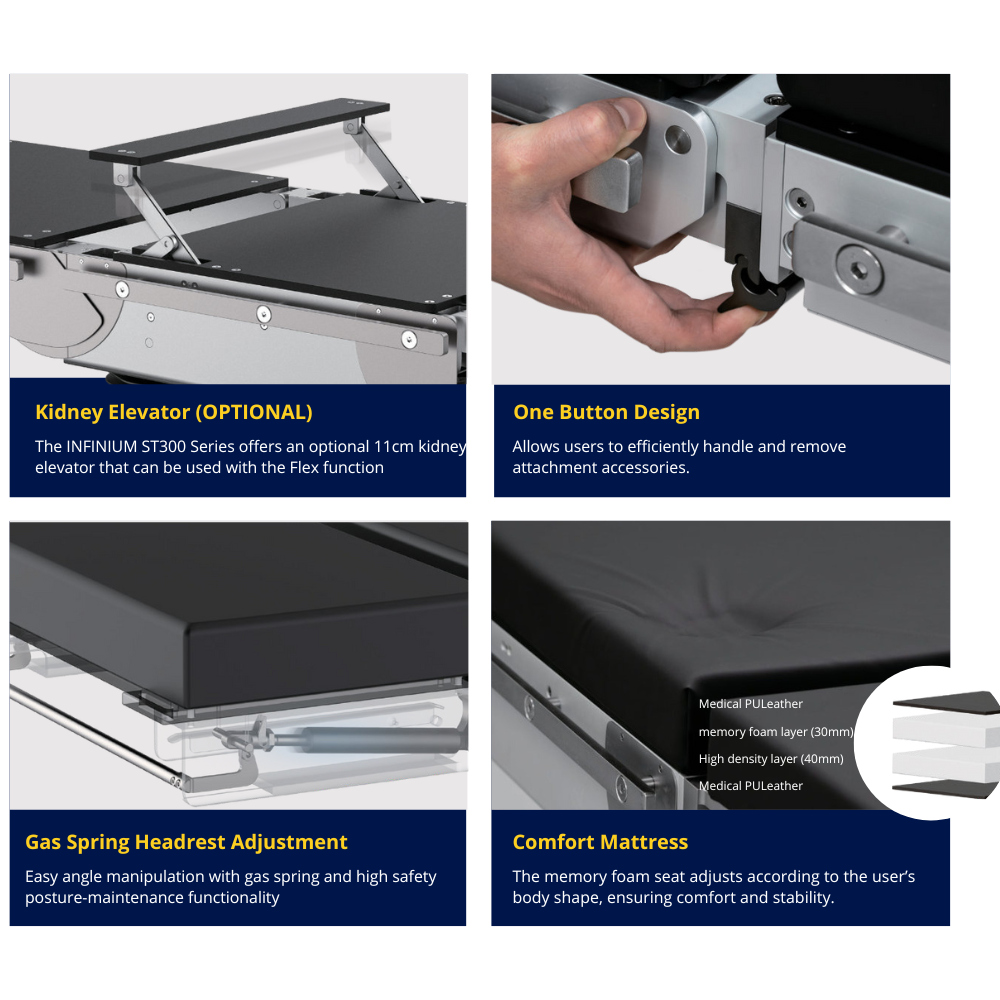

  • Comfort & Safety: Includes a comfortable memory foam mattress, gas spring headrest adjustment, and premium electronic locking casters for stability.
  • Technical Excellence: Dual power operation (internal battery and external), stainless steel and aluminum construction, and electronic positioning.
  • Leg Section Options: Available with 45°/-45° or 30°/-90° configurations, including manual split options.

Designed for the Modern Surgery Centers

With the INFINIUM ST300, you’re investing in a surgical table that prioritizes affordability without sacrificing reliability. It includes an optional electric kidney bridge, easy angle manipulation with gas spring support, and features focused on patient safety and surgeon comfort. Its intelligent design incorporates collision prevention, return-to-level function, and ergonomic foot access, ensuring precise positioning and enhanced efficiency.  INFINIUM is committed to excellence and innovation in medical technology. Our ST300 Surgical Table embodies this dedication, providing solutions that meet the demands of contemporary healthcare while enhancing patient outcomes worldwide.

Versatile Surgical Table Accessories & Attachments

The ST300 offers numerous surgical table accessory options for a wide range of procedures. Many of these are universal and compatible with standard USA rail tables.

Safety & Ergonomics

The ST300 emphasizes safety with its anti-collision feature during slide operations and electronic floor locking for stability on uneven surfaces. Ergonomic design ensures maximum foot access for surgeons and comfortable positioning for patients, supported by a premium memory foam mattress that conforms to body shape for enhanced stability.

Technical Data

Tech Data

  • Maximum Overall Load (Patient and Accessories)
    • 1,000 lb. (454 kg) patient support, including raise/lower (when centered on the column in Normal Orientation)
    • 600 lb. (272 kg) full table articulation, including Slide
    • 350 lb. (159 kg) : Reverse Mode
  • Power Options: Can operate with internal power and external power. Long life battery.
  • Battery:
    • Specially designed batteries with capacity for two working days’ use in the operating room.
    • Electronic monitoring of the battery charge level with optical indicator.
    • Batteries recharged from mains power supply, 50–60 Hz, via power supply cord.
  • Stability: 4-point self-leveling floor locks ensure stable positioning of the table with a fully mechanical emergency brake release.
  • Materials:
    • Column casing and base cover made of stainless steel.
    • Supporting frames for the seat section and back section made of aluminum.
    • Leg plate sockets, joint covers, and side rails made of stainless steel.
  • Table Top: Operating table top subdivided into four sections: headrest, back plate, seat plate, leg plates.
  • Accessory Interfaces: Symmetrical accessory interfaces for Normal and Reverse positioning.
  • Manual Override: If the electronics or hydraulics fail, an integrated tool can manually unlock the brakes.
  • Adjustments: Electronic adjustments via wired hand control.

Construction Features Technical Data

Feature
INFINIUM ST300
Length of Operating Table Top
83.58 in
Width without Side Rails
20.47 in
Width across Side Rails
22.52 in
Weight
617 lb

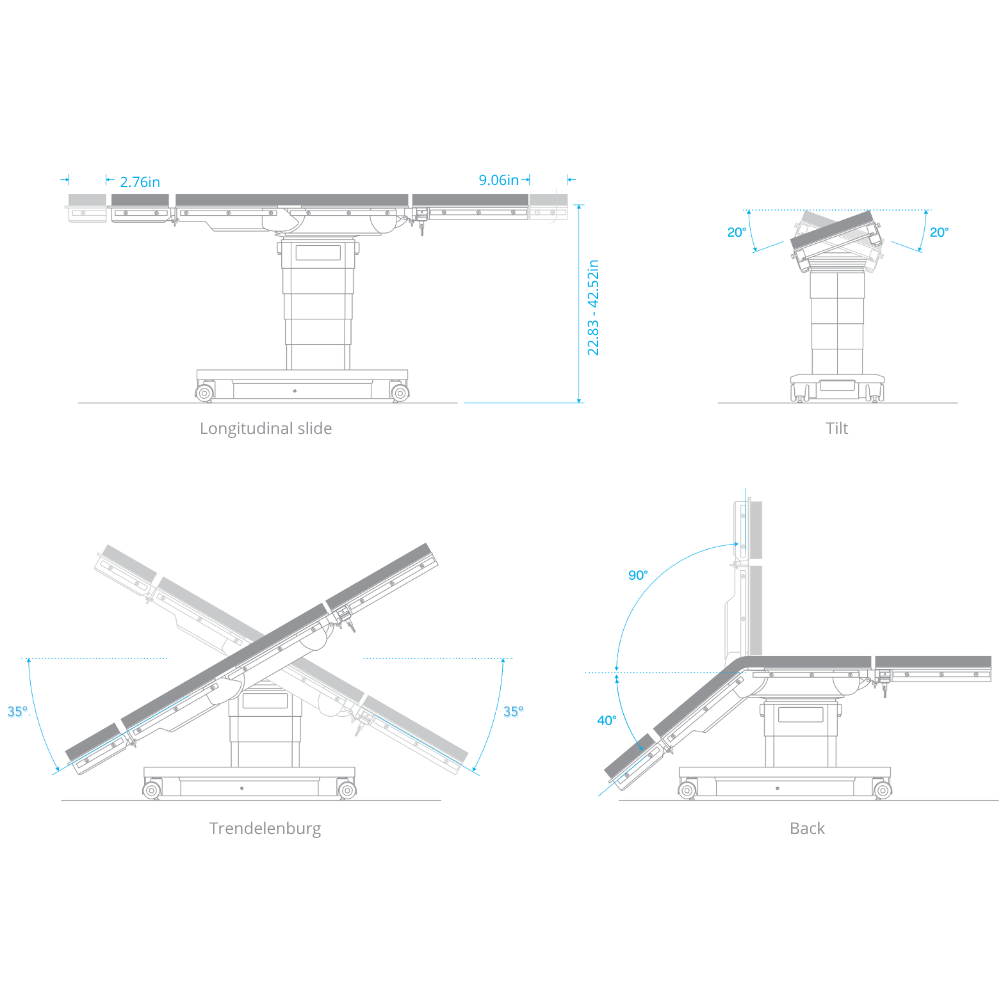

Height without Padding
22.83 – 42.52 in

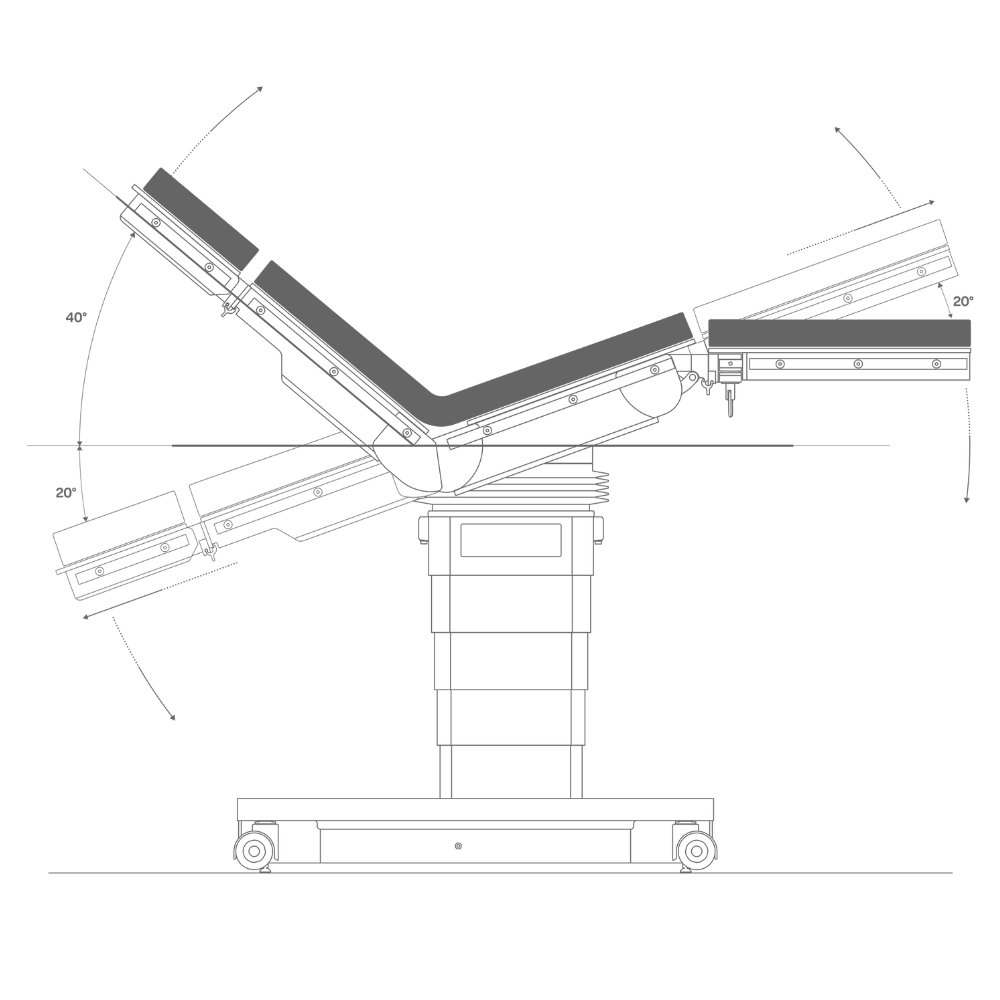

Trendelenburg / Reverse Trendelenburg
35°/35°
Lateral Tilt
±25°
Back Plate
90°/-40°

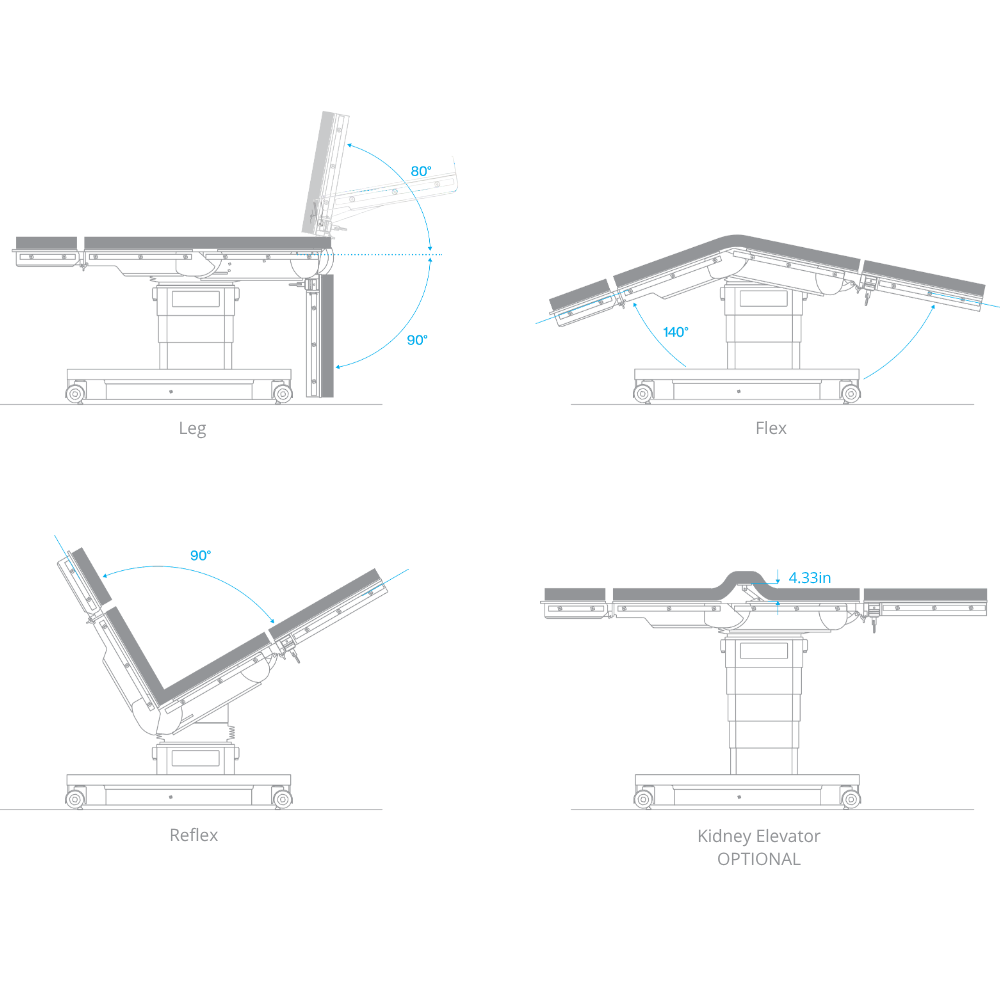

Leg Plate
45°/-45° or 30°/-90°
Headrest (Manual)
35°/35°
Longitudinal Slide
9.06 in
Kidney Elevator
4.33 in (Optional)
Flex/Reflex
140°/90°
Base Brake Mechanism (Lock/Unlock)
Electronic

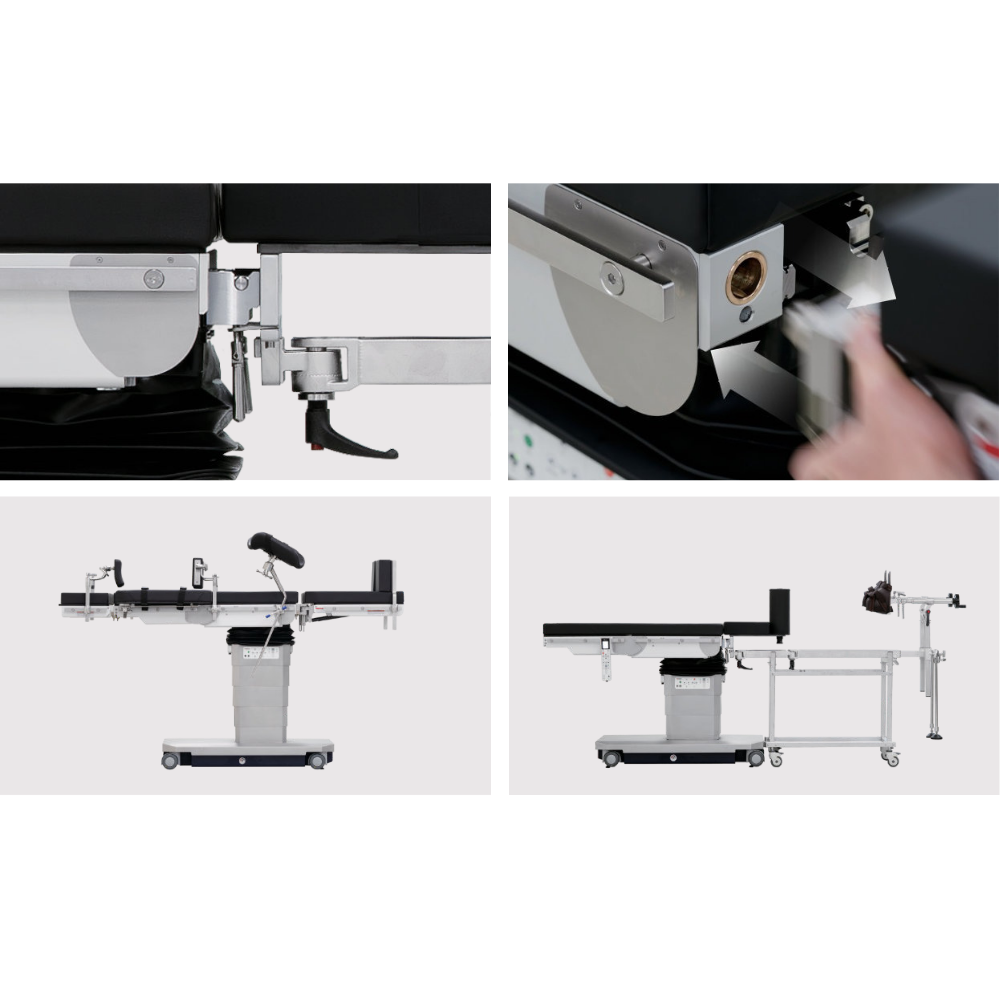

Safety & Ergonomics

 Real World Ergonomics

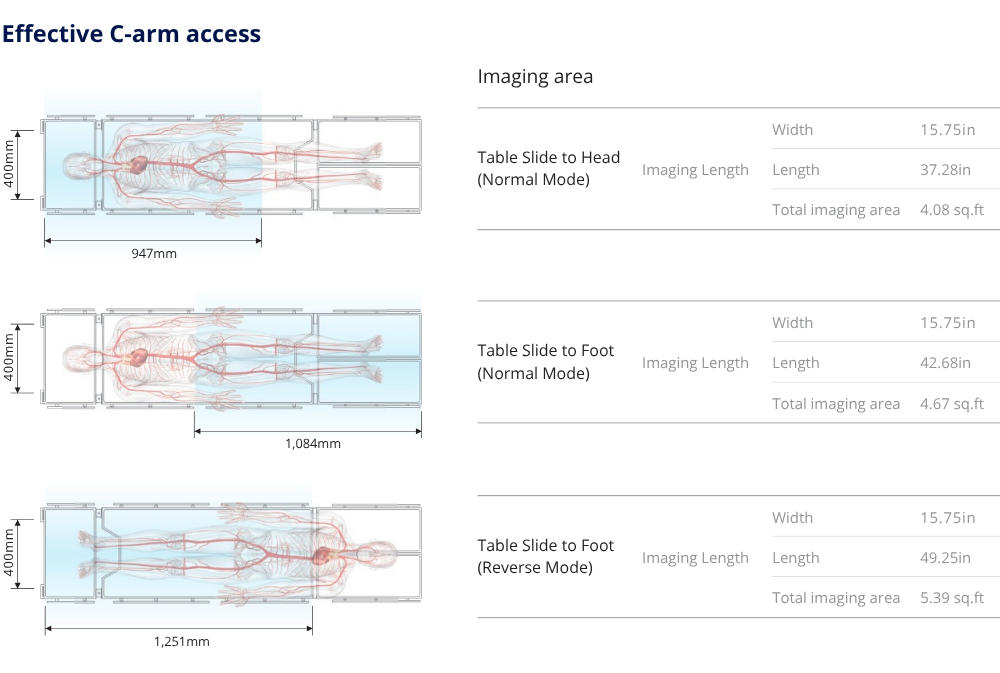

Imaging Ready

Accessories

ThumbnailNameTagSKU
Accessory TrolleyAccessory Trolley – Surgical Table AttachmentsNone410.000.0096
Anesthesia ScreenAnesthesia Screen – Surgical Table AttachmentNone410.000.0042
Arm Board - Hand MicrosurgeryArm Board – Hand Microsurgery Extension for Surgical TableArm Boards410.000.0009
Arm Board - Hanging UniversalArm Board – Hanging UniversalArm Boards410.000.0082
Arm Board - Lateral PositionArm Board – Lateral PositionArm Boards410.000.0080
Arm Board - Standard Surgical TableArm Board – Standard Surgical TableArm Boards410.000.0081
Arm Board - Vertical Three JointArm Board – Vertical Three JointArm Boards410.000.0072
Beach Chair ModuleBeach Chair – Surgical Table Module for Shoulder SurgeryShoulder410.000.0086
Clark Socket ClampClamp – Round Clark Socket – Surgical Table AttachmentClamps
Square ClampClamp – Square Siderail – Surgical Table AttachmentClamps410.000.0040
Foot BoardsFoot Boards – Surgical Table Foot & Knee SupportsLeg/Knee410.000.0050
Gel Pad - Wilson FrameGel Pad – Intervertebral Disc for Wilson Frame Topper – (Pad Only)Positioning Pads
Gel Chest RollGel Pad, Abdominal & Chest Roll – Surgery Prone PositioningPositioning Pads410.000.0071
Gel Arm Tucking PadGel Pad, Contoured Arm Tucking – Femoral Condyle – Surgical PositioningPositioning Pads410.000.0070
Gel Prone Horseshoe HeadrestGel Pad, Headrest Prone – Open Horseshoe Style PositionersPositioning Pads410.000.0090
Gel Pad Headrest Prone SquareGel Pad, Headrest Prone – SquarePositioning Pads410.000.0063-1
Gel Closed Head RingGel Pad, Headrest, Closed Ring – Supine Surgical PositioningPositioning Pads410.000.0088
Gel Knee Leg Ankle PadGel Pad, Knee, Leg, Ankle – Surgical PositioningPositioning Pads410.000.0092
Gel Lateral Position PadGel Pad, Lateral – Surgical PositioningPositioning Pads
Gel Chest Pelvic PadGel Pad, Prone Chest & Pelvic Table PositioningPositioning Pads410.000.0043
Gel Multi Position PadGel Pad, Rounded – General Surgery PositioningPositioning Pads410.000.0094
Carbon Fiber Prone Head StabilizerHead Stabilizer – Carbon Fiber Prone Table Head AttachmentHead410.000.0019-1
Mayfield Style Head StabilizerHead Stabilizer – Mayfield Style Craniocerebral Head AttachmentHead410.000.0019
IV PoleIV Pole – Surgical Table AttachmentNone410.000.0053
Jackson Spine TableJackson Spine TableNone
Lateral Supports - Light BodyLateral Supports – Light Upper Body & Lumbar AttachmentsLateral Support410.000.0083-1
Universal Lateral SupportLateral Supports – Universal Orthopedic & NeurosurgicalLateral Support410.000.0084
Waist SupportsLateral Supports – Waist & Pelvic Table Arm AttachmentLateral Support410.000.0083
Arthroscopic Knee HolderLeg Holders – Arthroscopic Total Knee SupportLeg/Knee410.000.0021
General Use Knee SupportLeg Holders – General Use Knee SupportLeg/Knee410.000.0021-1
Large General Surgery Leg HolderLeg Holders – Large General Surgery Leg HolderLeg/Knee410.000.0021-2
Blue Pneumatic StirrupsLeg Holders – Stirrups Blue Pneumatic Lithotomy StyleLeg/Knee
Yellow Cystoscopy StirrupsLeg Holders – Stirrups Yellow Cystoscopy / Candy Cane StyleLeg/Knee
Ophthalmic Hand FrameOphthalmic Hand Frame / SupportHead
Protective SleeveProtective sleeve for ST500 RemoteNone410.000.0095
Remote ControlRemote Control for ST500 tableNone410.000.0067
Arm StrapsRestraint Strap – Arm – (Set of 2)Restraint Straps410.000.0054
Forearm Restraint StrapRestraint Strap – Forearm – Surgery (comes individually)Restraint Straps410.000.0078
Head Restraint StrapRestraint Strap – Head – SurgeryRestraint Straps410.000.0076
Leather Body Safety BeltRestraint Strap – Leather Body – Safety BeltRestraint Straps410.000.0069-1
Leg Restraint StrapRestraint Strap – Leg – SurgeryRestraint Straps410.000.0077
Safety BeltRestraint Strap – Safety BeltRestraint Straps410.000.0069
Safety/Positioning AccessorySafety/Positioning AccessoryNone
Shoulder SupportsShoulder Supports – Orthopedic Table AttachmentShoulder410.000.0041
Shoulder Traction FrameShoulder Traction – Lightweight Orthopedic Frame KitShoulder, Spine Traction410.000.0074
Spinal FrameSpinal Frame – Carbon Fiber Orthopedic Table ModuleSpine Traction410.000.0087
Carbon Wilson Spine FrameSpine Frame: Carbon Wilson StyleSpine Traction410.000.0022
Carbon Fiber Traction FrameTraction Frame – Orthopedic Carbon Fiber & StainlessSpine Traction410.000.0065
Hana Table Traction FrameTraction Frame – Orthopedic Hana StyleSpine Traction
Waste TrayWaste TrayNone410.000.0032

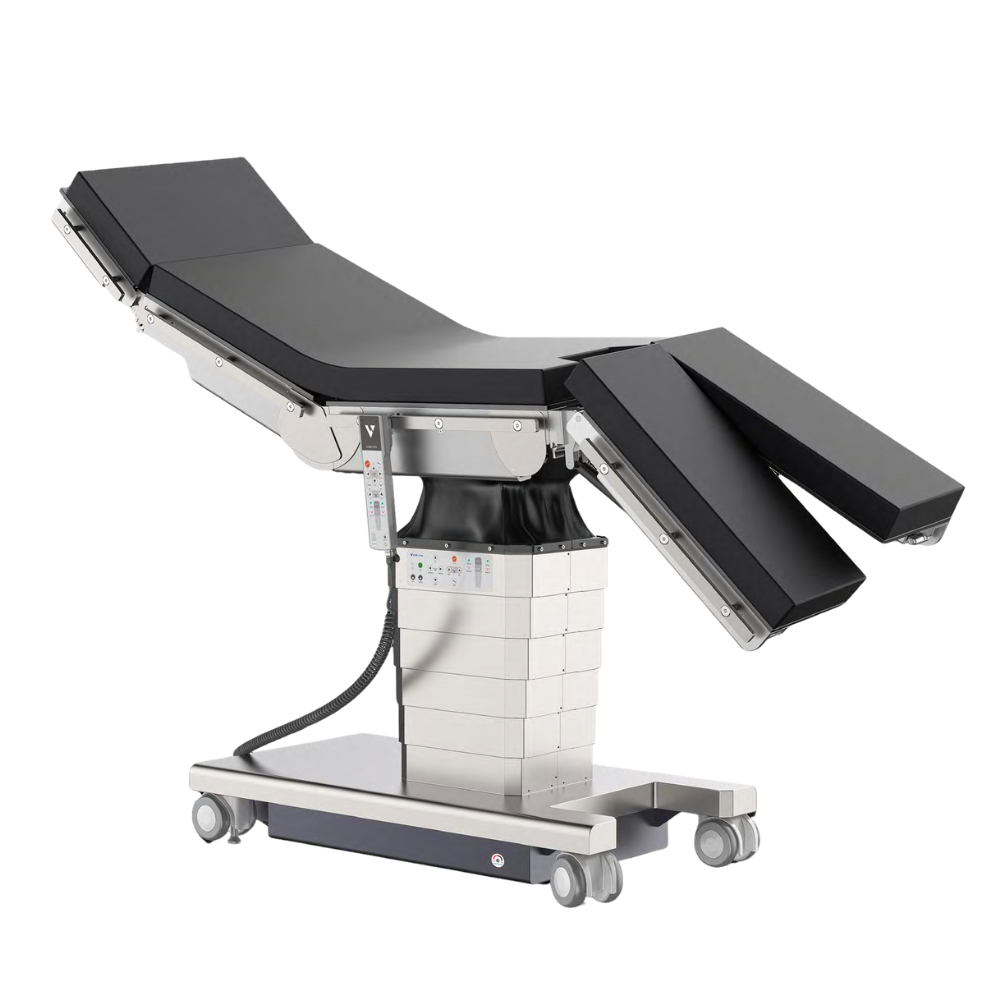

Infinium ST300 - 1000lb Surgery Center Surgical Table

Download

Infinium ST300 Surgical Table designed for modern surgery centers and operating rooms.
