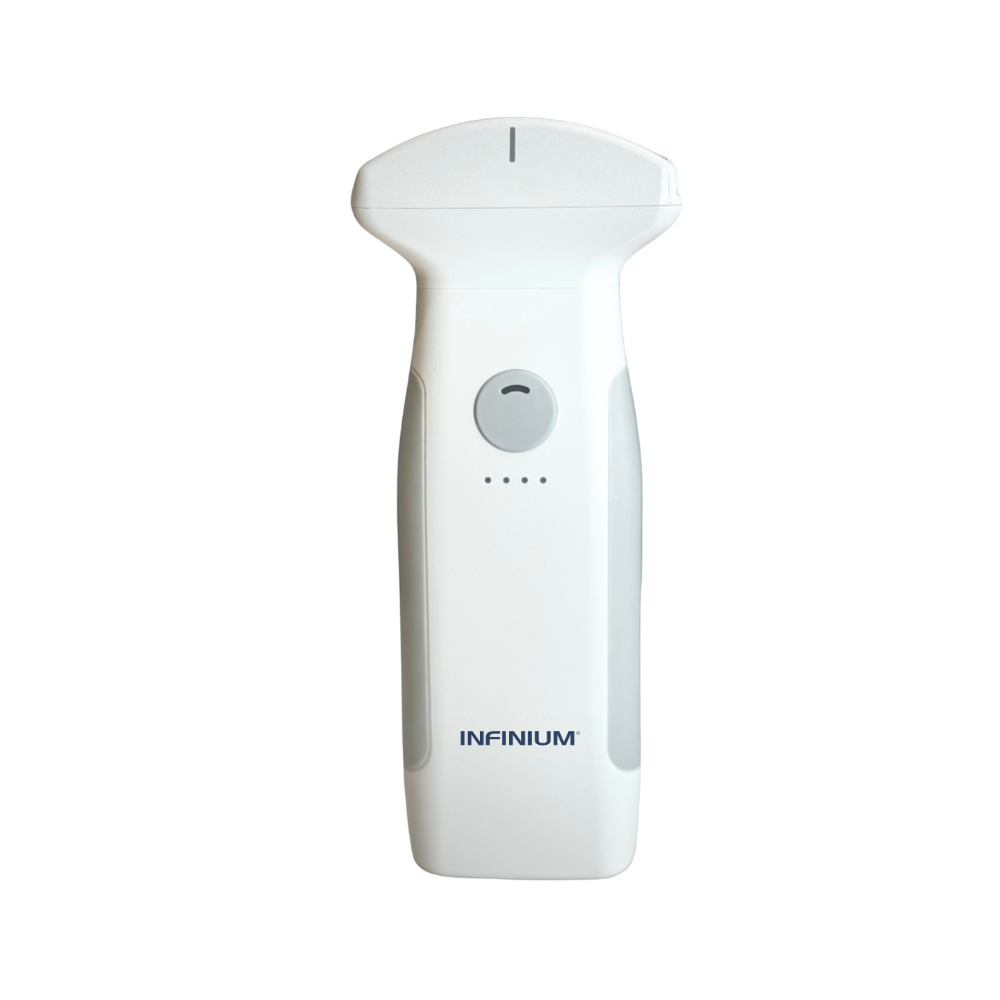

VioScan C7: Versatile Convex Handheld Ultrasound by Infinium Medical

Description

A state-of-the-art portable, wireless, Convex ultrasound scanning device designed to provide high-quality imaging in a compact, user-friendly package. With its advanced imaging technology, the VioScan C7 delivers clear, detailed ultrasound images to a tablet, mobile device, or PC making it an invaluable tool for medical professionals in various settings.

The device features a lightweight and ergonomic design, ensuring ease of use and mobility, while its intuitive interface allows for quick and efficient scanning operation. Whether used in emergency situations, remote locations, or routine clinical settings, the VioScan C7 offers reliable performance and exceptional image clarity, enhancing diagnostic accuracy and patient care.

Quick charging 2hr battery life
Seamless DICOM connectivity integration with EMR
Fast connection across Windows, iOS, & Android
Customize 30+ imaging parameters
15+ preset medical protocols
Smart AI Assisted Clinical Support
IP67 waterproof unit with a feather-light design
2.0-5.0 MHz bandwidth with 11.8in penetration depth
NO SOFTWARE SUBSCRIPTION

Intelligent Imaging

The VioScan C7 Convex features 15 imaging presets for a fast and easy start. The user can also custom set presets can with over 30 imaging parameters. Also featured are integrated AI measurement tools for automatic gain, settings, measurements and calculations.

Imaging Modes

B-Mode, M-Mode, Color Doppler, PW, and Power Doppler

Clinical Applications

Bladder measurement, OB Early/Mid/LATE, Gynecology, Urology, Small Organ (prostate, thyroid, scrotum, breast, spleen, renal), Abdominal, Cardiac, Needle/Catheter Guidance

Features:

4 hours battery life
B-mode & M-mode
Window/Android/IOS compatibility
30+ Imaging parameters
15+ Presets for quick start applications
Custom user presets
Excellent image quality
Color & Power doppler
Auto-measurement for OB & Cardiology
Auto-measurement for bladder volume
Real-time update through App
NO SOFTWARE SUBSCRIPTION

Optional:

Fast DICOM 3.0 support
Pulsed wave doppler
Needle Guide
Charging Craddle

Clinical Gallery

All
Abdominal
Breast
Heart
MSK
OB
Vascular
Other

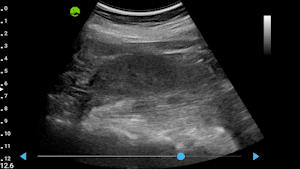

Kidney

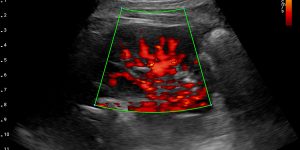

Kidney - Power Doppler

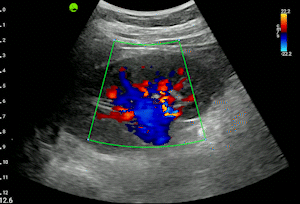

Kidney - Color Doppler

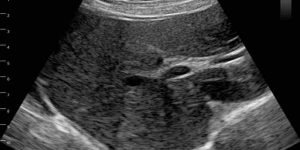

Liver

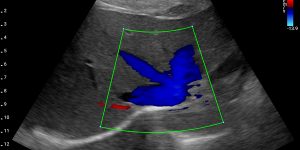

Liver Transverse - Color Doppler

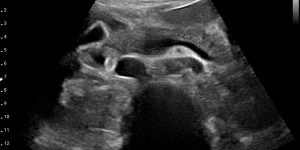

Pancreas

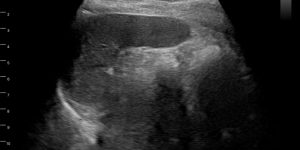

Spleen

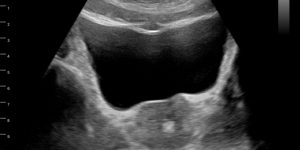

Prostate Gland

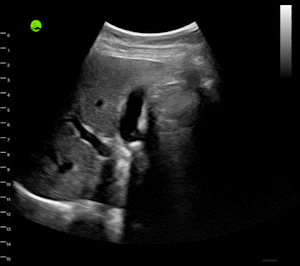

Gall Bladder Stones

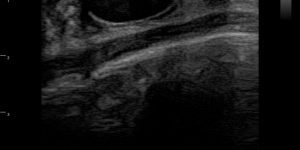

Breast Fibroadenoma

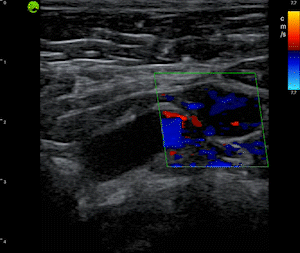

Post Vaccination Axillary Lymph Node Hyperplasia - Color Doppler

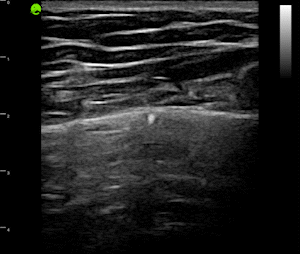

Normal Lung HRUS

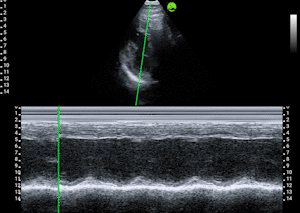

Parasternal Short-Axis - M-Mode

Parasternal Long-Axis

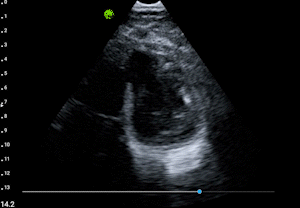

Parasternal Short-Axis

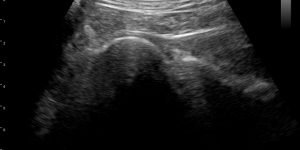

Humeral Cartilage

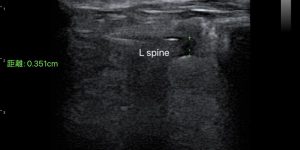

Vertebrae - L Spine

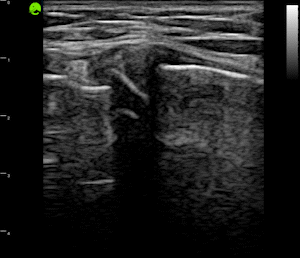

Knee - Spur & Bulging Meniscus

(DJD with femoral spur, bulging of medial meniscus)

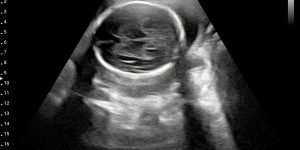

Fetus - 24 Weeks

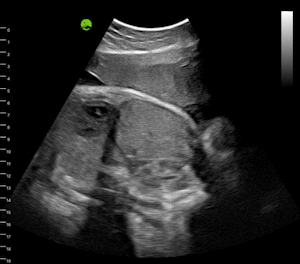

Fetus - 37 Weeks

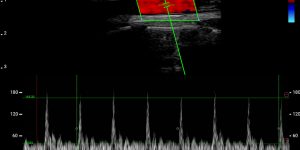

Carotid - Pulse Wave

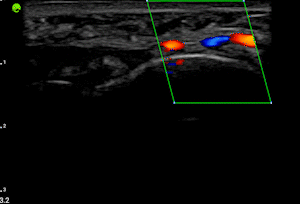

Finger Peripheral

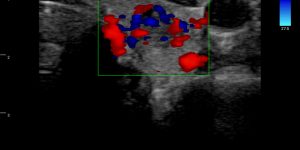

Thyroid

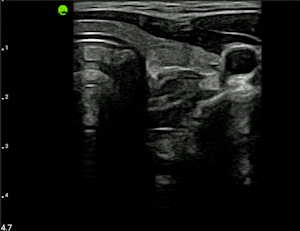

Esophagus

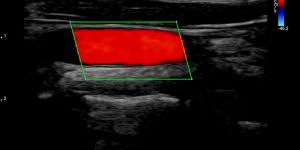

Carotid - Color Doppler

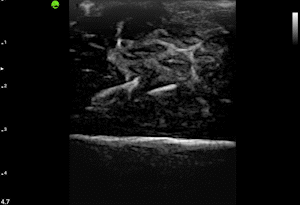

Needle Guided Aspiration

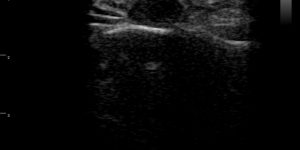

Face NGT

Technical Data

Array type: Curved Convex
Number of elements: 128
Depth: 18.9 cm (7.44 inches)
Frequency bandwidth: 2.0 – 5.0 MHz
Field of view: 60°
Depth: 18 cm (7.09 inches)
Radius of Curvature: 60 mm (2.36 inches)
Field of View: 60゜
Clinical Applications: Abdomen, Abdomen Difficult, Renal, GYN, OB Mid Late, OB Early, Spleen, Bladder
Measurements, FAST, Color Doppler*, Power Doppler*, Pulsed Wave*
Dimensions: 187 × 74 × 40 mm (7.36 × 2.91 × 1.57 inches)
Weight: 388 g (13.69 oz)

M mode measurement

Ventricle Measure
LVIDd : Left ventricular internal diameter end diastole
LVIDs: Left ventricular internal diameter end systole
EDV: End diastolic volume, amount of blood in the ventricle during diastole
ESV: End systolic volume, amount of blood in ventricle after systole
EDV Index: End-diastolic volume index, referred to as EDV corrected for BSA
= EDV / BSA
ESV Index: End- systolic volume index
= EDV / BSA
SV: Stroke volume, volume of blood pumped from the heart in one cycle of diastole and systole, is affected by
Preload, contractility and Afterload
= EDV – ESV
CO: Cardiac output, quantity of blood pumped per minute through the aorta and into the peripheral circulation, is proportional to (Arterial pressure / Total peripheral resistance)
= SV * HR
EF: Ejection fraction, reflects the percentage of blood ejected from the ventricle
= SV / EDV * 100%
FS: Fractional shortening
= (LVIDd – LVIDs) / LVIDd * 100%%

Cardiac measurement in B mode

BSA: Body Surface Area
= (Height * Weight / 3600)^½
SV (ml): Stroke volume
= EDV – ESV
SI (ml/m²): Stroke volume index
= SV / BSA
CO (l/min): Cardiac output
= SV * HR / 1000
CI (l/m/m²): Cardiac Index
= CO / BSA
EF (%): Ejection fraction
= SV / EDV * 100%

Needle Guide

OPTIONAL: This reusable needle guide is made of high-grade, corrosion-resistant medical stainless steel and accurately supports angle-adjusted biopsy procedures.
