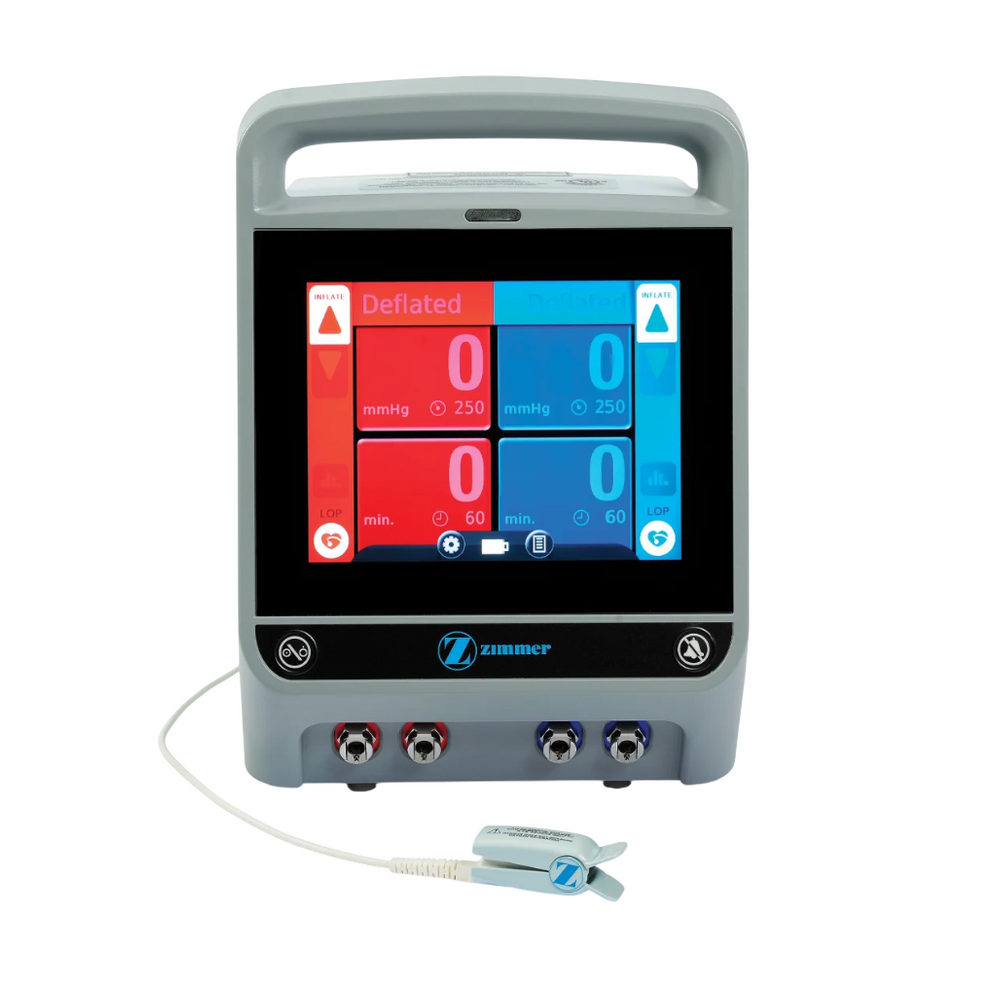

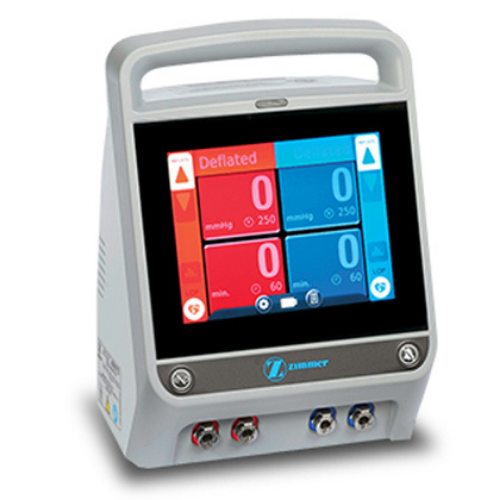

Refurbished Zimmer Biomet ATS 4000 Tourniquet System

Refurbished Zimmer Biomet ATS 4000 Tourniquet System

The refurbished Zimmer Biomet ATS 4000 Tourniquet System from Infinium Medical offers personalized pressure technology for effective surgical blood flow control. This reliable, user-friendly system with touchscreen interface and battery backup provides proven performance and budget-friendly value for hospitals, clinics, and surgery centers, ensuring patient safety in medical procedures.

Share This Item :

Description

The refurbished Zimmer Biomet ATS 4000 Tourniquet System is a dependable solution for medical professionals requiring precise blood flow occlusion in surgical environments. Offered by Infinium Medical, this system leverages personalized pressure technology to tailor cuff inflation to individual patient needs, promoting safety and efficiency in operating rooms. Its familiar design and robust functionality make it a valuable asset for healthcare facilities aiming to optimize budgets without compromising on reliability in diverse medical settings.

Advantages

The ATS 4000 stands out with its ability to minimize post-operative complications through optimal pressure application, reducing risks like nerve damage and pain. Its dual-port system enables simultaneous management of two cuffs, streamlining procedures and saving time. Self-calibration and advanced alerts ensure consistent accuracy and safety, while the six-hour battery backup supports uninterrupted use during power outages. This refurbished unit delivers exceptional value, combining familiarity for surgical teams with cost-effective performance ideal for hospitals and clinics managing tight budgets.

Features

  • Personalized Pressure Technology for patient-specific cuff inflation
  • Touchscreen user interface with 8.4-inch color display
  • Self-check calibration on startup for accuracy and time savings
  • Cuff alert and lockout to prevent unintended deflation
  • Six-hour lithium-ion battery backup for uninterrupted operation
  • Color-coded cuffs in sizes from 8 to 42 inches for versatile patient fit
  • Carrying handle with pull-out hangers for easy transport and storage
  • Limb Occlusion Pressure (LOP) feature for minimal pressure application
  • Dual-port, dual-cuff system for independent pressure regulation
  • Advanced leak detection and line occlusion alerts for safety
  • Pre-op cuff test to ensure integrity before procedures

Medical Applications

In medical practices, clinics, and hospitals, the Zimmer Biomet ATS 4000 Tourniquet System excels in orthopedic surgeries such as knee and hip replacements, where controlled blood flow is critical for clear surgical fields and reduced blood loss. It is particularly beneficial in extremity procedures, helping to lower the incidence of post-operative issues like swelling or nerve injuries. This system’s reliability supports its use in ambulatory surgery centers and high-volume hospitals, fitting seamlessly into routines that demand precision and patient-centered care in various healthcare environments.

ParameterValue (Imperial)Value (Metric)
Height13.1 in33.3 cm
Width9.3 in23.6 cm
Depth10.5 in26.7 cm
Weight13.2 lbs6 kg
Time Alarm Set Range1 - 240 minutes; 1 minute increments
Timer Accuracy0.25% of elapsed time
Line Voltage Range100 - 240 VAC, 50/60 Hz
Line Current1000 mA RMS @ 120 VAC
Input Power53 Watts Typical
Power CordType SJT, AWG 16, 14 ftType SJT, AWG 16, 4.27 m
Power PlugHospital grade, 3 prong straight blade, 15 Amp
Cuff Pressure Range50 - 400 mmHg, 1 mmHg increments
Extended Cuff Pressure Range401 - 600 mmHg, 1 mmHg increments
Pressure Accuracy±3 mmHg (50 - 600 mmHg)
Pressure Regulation±4 mmHg of set point
Maximum Pressures400 mmHg per cuff | 600 mmHg per cuff in extended range
Battery TypeRechargeable, 14.4 VDC, Li-Ion, 4.3 Amp hours
Battery Discharge Time360 minutes minimum with fully charged batteries
Battery Recharge Time10 hours (Maximum)
Number of PortsDual Port
Number of Potential CuffsDual Cuff
Mounting OptionsTable or Pole Mount
Battery Life6 hrs
User InterfaceTouchscreen
International Alarm Standard60601-1-8 Compliant
Display8.4" Color
Minimum/Maximum Pressure50/600 mmHg
Pressure Accuracy3 mmHg (50-600 mmHg)

Recommended Accessories

  • Dual Sterile Extension Hose with LUER Lock Connector: Extension for dual port connections.
  • Dual Sterile Extension Hose with PLC Connector: Extension for dual port PLC connections.
  • Single Sterile Extension Hose with LUER Lock Connector: Extension for single port connections.
  • Single Sterile Extension Hose With PLC Connector: Extension for single port PLC connections.
  • A.T.S. 500/750/1200 Hose, Red/WE: Hose for specific models.
  • A.T.S. 500/750/1200 Hose, Blue/W: Hose for specific models.
  • A.T.S. 1500/2000/3000 Dual Port Hose, Blue/W: Dual port hose.
  • A.T.S. 1500/2000/3000 Dual Port Hose, Red/W: Dual port hose.
  • CPC-TO-LUER Adaptors: Adaptors for connections.
  • A.T.S. Dual Hose Retrofit Kit: Kit for hose upgrades.
  • A.T.S. 500 Single Hose Retrofit Kit: Single hose upgrade kit.
  • Red Universal Hose Adapters: Adapters for hoses.
  • Blue Universal Hose Adapters: Adapters for hoses.
  • O-Rings For Tourniquet Cuff: Replacement rings.
  • LOP Sensor Kit: Kit for limb occlusion pressure measurement.
  • Tourniquet Accessory Basket: Storage basket.
  • Tourniquet Stand, Telescoping, with 28 Base: Stand for mounting.
  • Calibration Hose Accessory Kit (dual port): Kit for calibration.
  • Calibration Hose Accessory Kit (Single Port): Kit for calibration.
  • Cuff Sleeves (various sizes): Protective sleeves for cuffs.
  • Disposable Contour Cuffs (various sizes and types): Single-use cuffs for contoured fit.
  • Disposable Cylindrical Cuffs (various sizes and types): Single-use cylindrical cuffs.
  • Reusable Contour Cuffs (various sizes and types): Reusable cuffs for contoured fit.
  • Reusable Cylindrical Cuffs (various sizes and types): Reusable cylindrical cuffs.
