Description
Constructed from lightweight, high-strength aviation aluminum alloy with a polished silver finish, it offers superior durability, repeatable sterilization, and ease of use in high-volume clinical environments. Outperforming traditional arm boards with its six-joint adjustability and high load capacity, this device is an essential tool for hospitals and surgical centers requiring reliable support for upper extremity procedures. Certified for quality and safety, it includes an instruction manual and is packaged in a foam-lined protective carton for secure transport.
Key Features
- Multi-Joint Adjustability: Six articulated joints with 360° rotation for customizable arm positioning and enhanced surgical precision.
- High Load Capacity: Supports up to 551 lbs for stable immobilization during demanding procedures.
- Universal Compatibility: Engineered for seamless attachment to standard US operating table side rails, fitting most universal table systems.
- Lightweight and Durable: Aviation aluminum construction reduces setup time while withstanding repeated use and sterilization.
- Patient and User Safety: Polished surface minimizes infection risk; designed for quick adjustments without compromising stability.
- Ease of Setup: Simple mounting and locking mechanism for efficient intraoperative use.
- Included Accessories: Includes a padded hand rest as well as a vertical and horizontal handle.
- Optional Accessories: Available upgrades include a carbon fiber elbow bracket and a surgical palm retractor.

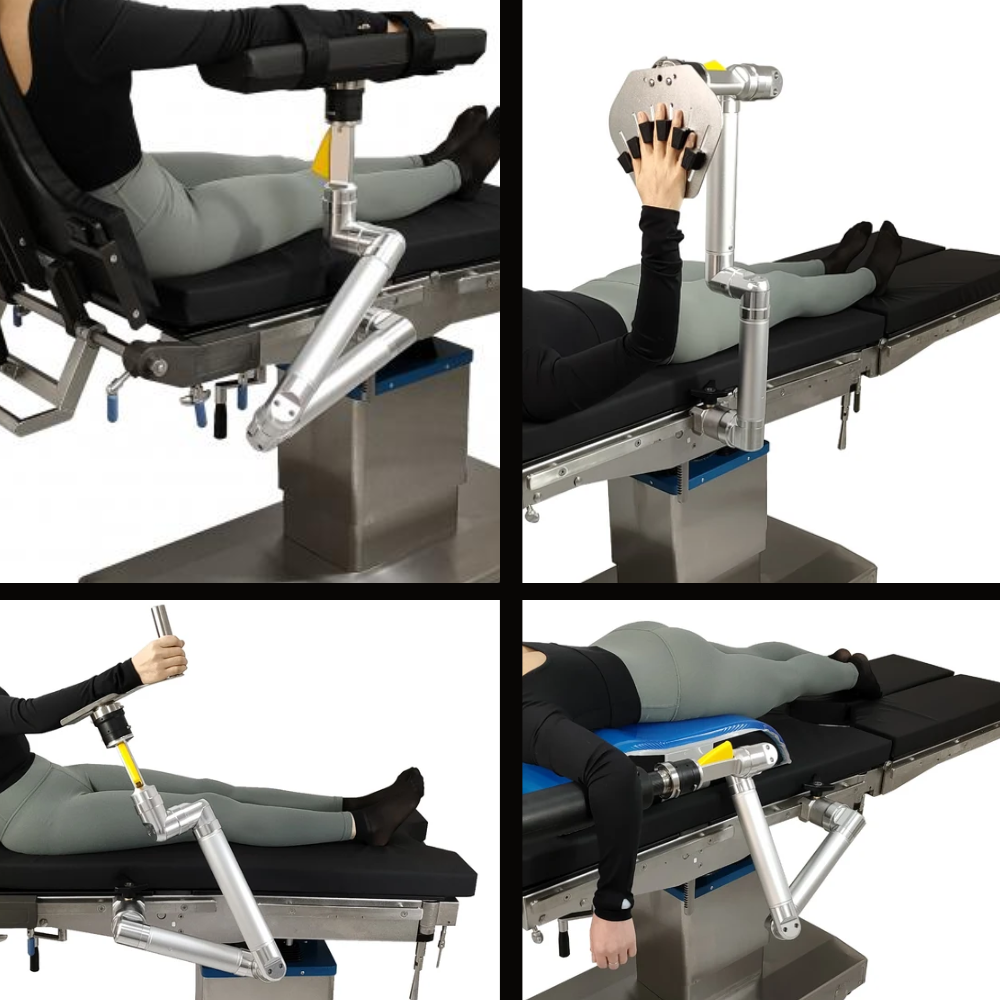

Applications
This versatile arm holder is widely used across multiple surgical specialties in U.S. hospitals and ambulatory surgery centers:
Clinical Application | Procedure Examples | Benefit of Six-Joint Design |
|---|---|---|
Shoulder Arthroplasty | Total Shoulder Replacement, Reverse Shoulder Arthroplasty | Allows precise arm abduction, external rotation, and elevation to optimize glenoid exposure without repositioning the patient |
Rotator Cuff Repair | Arthroscopic or Open Rotator Cuff Surgery | Maintains arm in neutral or slightly abducted position for extended periods, reducing surgeon fatigue and improving suture accuracy |
Upper Extremity Trauma | Humerus Fracture Fixation, Elbow Reconstruction | Provides stable, adjustable support for heavy traction or manipulation during plating and intramedullary nailing |
Hand & Wrist Surgery | Carpal Tunnel Release, Distal Radius ORIF | Secures forearm in supination/pronation with fine-tuned height and angle control for optimal surgical field access |
Beach Chair Position Support | Arthroscopic Shoulder Procedures | Locks arm securely away from the operative field while maintaining shoulder in elevated, flexed position |
Lateral Decubitus Positioning | Hip Arthroscopy (with arm tucked or extended) | Prevents arm drift and nerve compression during long cases by suspending limb in neutral alignment |
Bariatric & Revision Surgery | Complex Shoulder Revisions in Larger Patients | High 551 lb load capacity ensures safety and stability even under significant weight and torque |
OR Team Benefit: Circulating nurses and surgical techs can quickly adjust or reposition the arm intraoperatively without breaking sterility—ideal for teaching hospitals and high-throughput centers.
Specifications
Specification | Details |
|---|---|

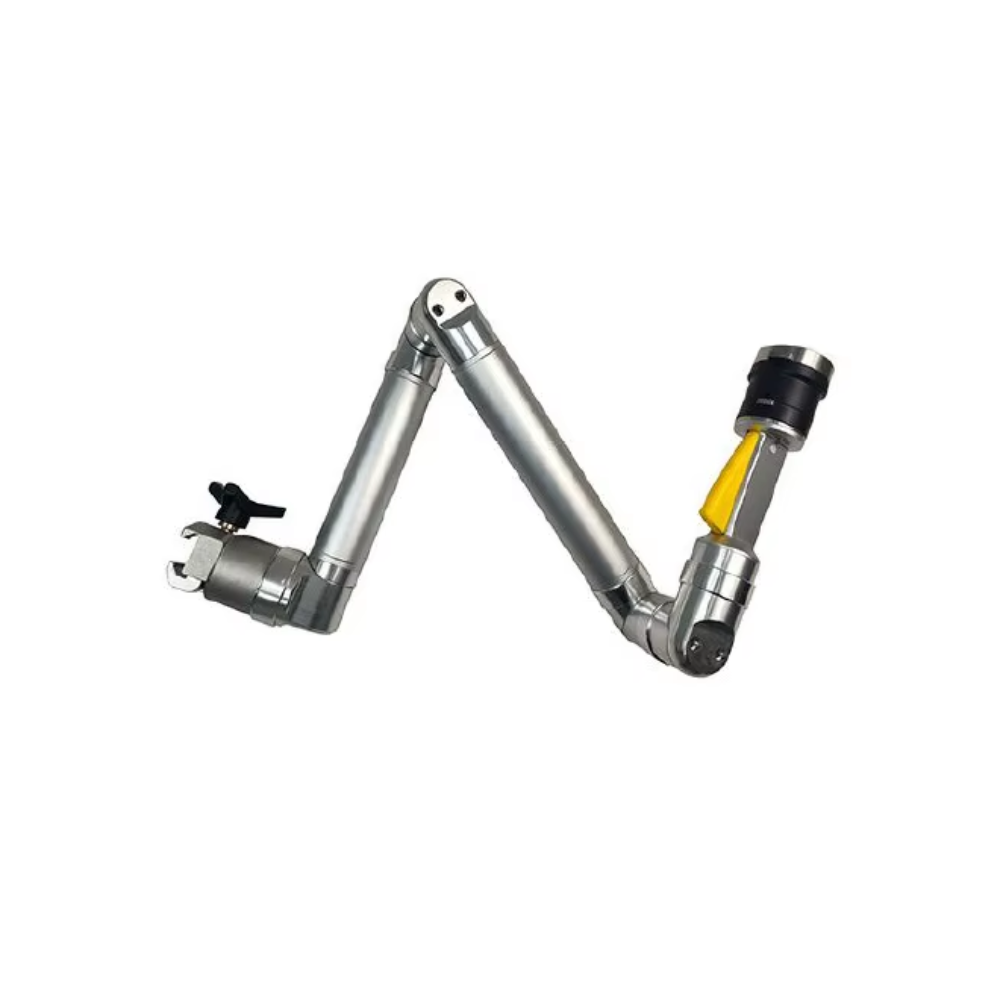

Product Name | Surgical Spider Arm Board (Six-Joint Arm Holder) |
Materials | Aviation Aluminum Alloy (Polished Silver Finish) |
Design | Six-Joint Robotic Arm Structure with 360° Rotation |
Installation Method | Operating Table-Mounted with Side Rail Clamps |
Overall Dimensions (US) | 37.4 x 15 x 3.15 inches |
Weight | 14.88 lbs |
Load Capacity (US Standard) | 551 lbs |
Certifications | CE, ISO13485, FDA-Cleared |
Warranty | 1 Year |
After-Sale Service | 24/7 Technical Support, Installation Guidance, Maintenance Assistance |
Purpose | Secure arm positioning for shoulder joint surgeries, orthopedic procedures, and upper extremity operations |
Features | Highly Adjustable, High Load Capacity, Sterilizable, Lightweight |
This enhanced Applications section uses U.S.-standard clinical language, references common CPT-coded procedures, and highlights practical OR workflow advantages—making it ideal for hospital value analysis committees, surgeons, and supply chain teams.
