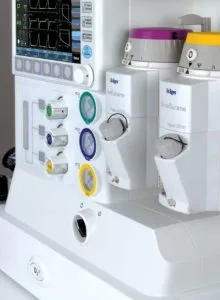

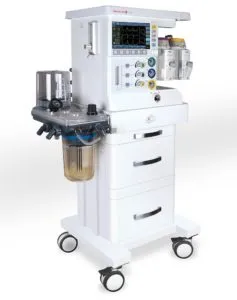

THE ADS II
After 10 years of production the ADSII has evolved into a highly advanced digitally controlled anesthesia system. The latest ADSII offers the same sturdy construction as previous models but now offers the latest advancements in anesthesia delivery and patient ventilation. The ADSII provides extremely accurate fresh gas delivery via electronic flowmeters. The ADSII ventilator has been upgraded with a larger 10.1 inch color screen with more ventilation modes and a user friendly software interface. Many advanced patient monitoring options are available with the ADSII particularly: Auto ID Anesthetic Agent Measurement, EtCO2, 12 lead ECG, Invasive Blood Pressures, and Cardiac Output. Further Specifications are listed below. Please contact sales@site_99d86bc1-9f52-4353-b1cf-4e5e15333b21 for further information.
Ventilator
mode VCV，PCV，SIMV+VCV+PSV，SIMV+PCV+PSV，Manual, Standby
Tidal volume(VT) 20～1500 mL
Frequency (f) 1 ～ 60 bpm
I:E 3:1～1:6（Increment：0.5）
Ti 0.1～10 s（Increment：0.1 s）
Inspiratory pause (Tp) OFF，5%～50%
E-PEEP Integrated electronic PEEP OFF，4～30 cmH2O
Flow trigger (FTRIG) 1～15 L/min
Pressure control 5～70 cmH2O
Pressure support
Pressure Limit
5～60 cmH2O
PEEP+5～PEEP+70 cmH2O
Pneumatics
Gas supply Pipeline：O2, N2O and Air；Optional Yokes: 1x O2 ;1x N2O;
Pressure gauge Mechanical
Flowmeter electronic flow meters for O2, N2O and air； O2 and N2O linkage and N2O cutoff function
Bellows volume Adult，0～1500 mL，pediatric(optional)，0～300 mL
APL valve 2～70 cmH2O
CO2 Canister Volume
By-pass
1.5 L（1.35 Kg）
Automatic; change soda lime during operation.
bag/vent switch switch for manual ventilation and mechanical ventilation
Monitoring
C, R, VTE, VTI, MV, MVspn, f, fspn, I:E, Ppeak, Pmean， Pplat， Pmini
Waveforms; P-T, F-T, V-T, Loop V-P, F-V, F-P
Optional: SpO2, EtCo2, NIPB, IPB, CO, ECG (3,5,or 12 Lead), Agent ID
