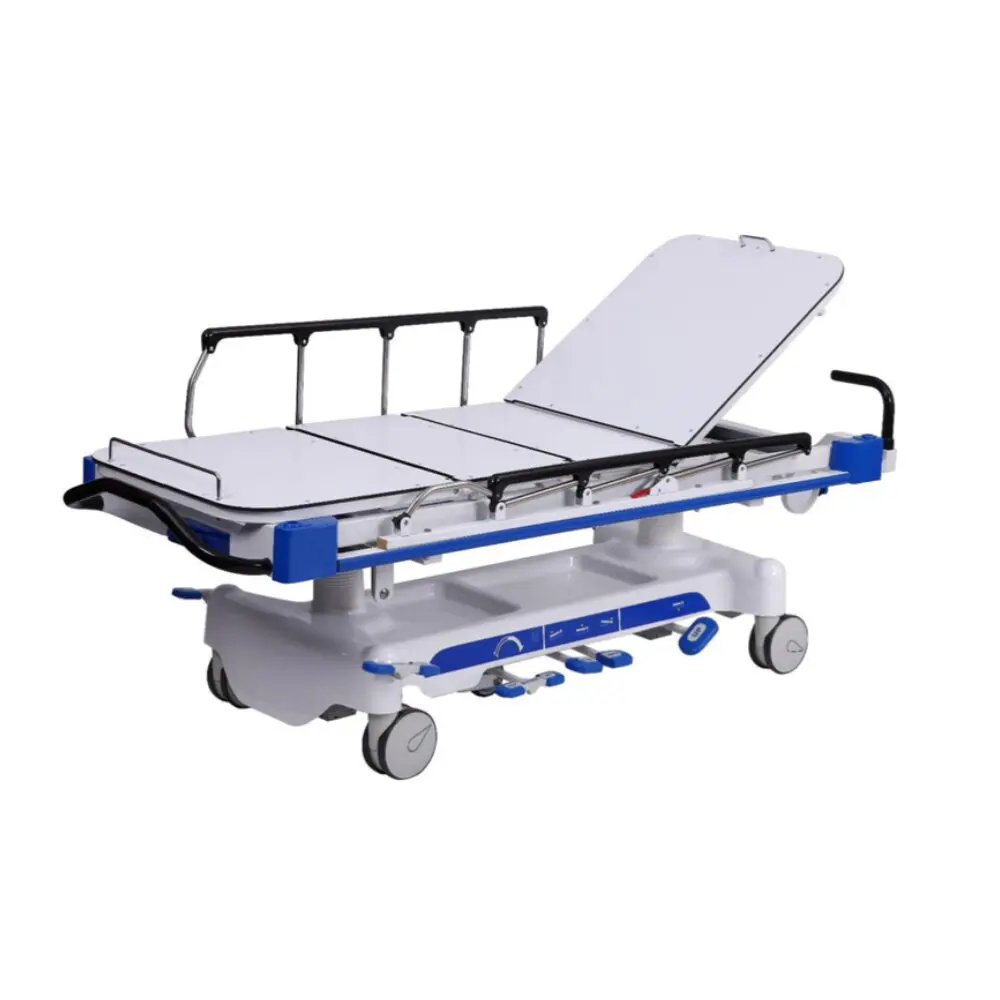

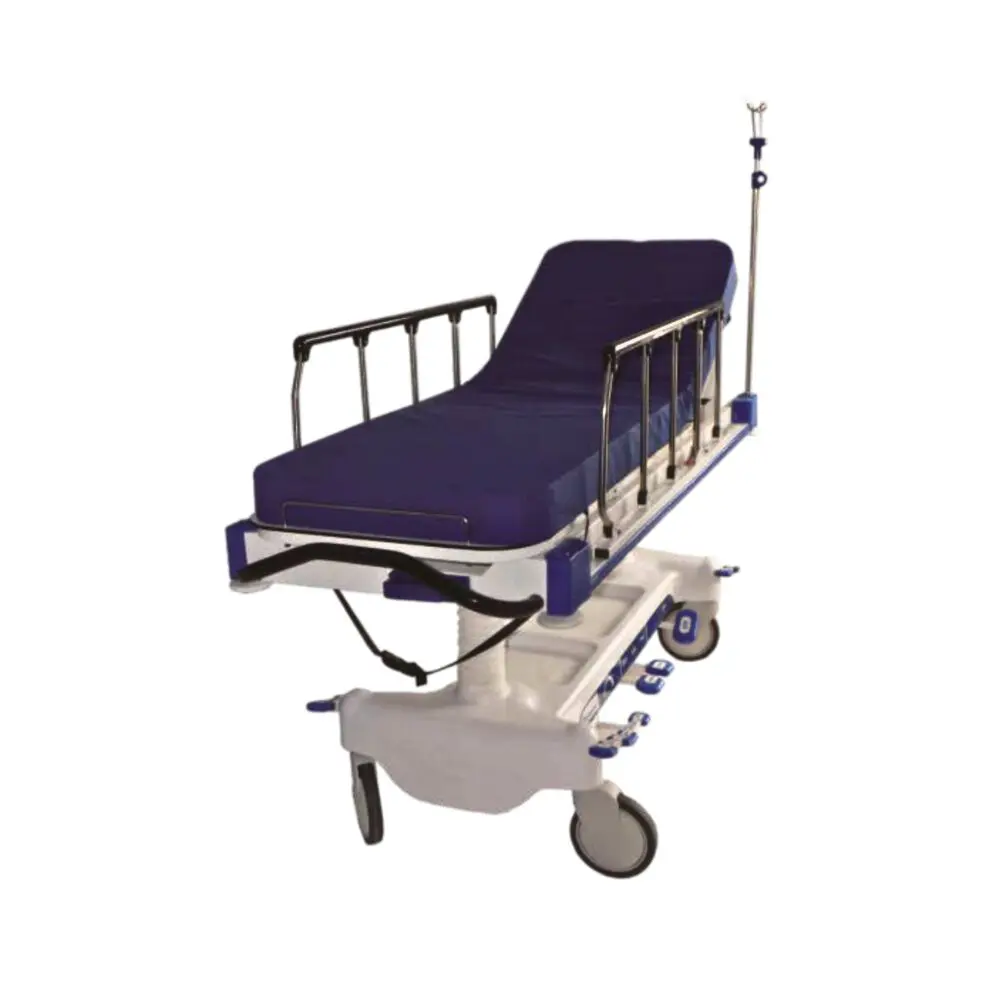

Traverse Ambulatory Patient Stretcher

Traverse Ambulatory Patient Stretcher

The Traverse hydraulic ambulatory patient stretcher is designed for the efficient transport of patients in medical facilities, with height adjustability by pedals on both sides. This hydraulic stretcher can carry patients weighing up to 550 pounds and has a long list of helpful features  including easy to use dual five-function control pedals.

Category:

Share This Item :

Description

The Traverse hydraulic ambulatory patient stretcher is designed for the efficient transport of patients in medical facilities, with height adjustability by pedals on both sides. This hydraulic stretcher can carry patients weighing up to 550 pounds and has a long list of helpful features  including easy to use dual five-function control pedals.  It is ergonomic, durable, easy to use, and  still designed to fit a reasonable budget.

Patient Stretcher Features:

  • Sturdy reinforced steel frame
  • X-Ray translucent plastic bed board with optional X-Ray cassette tray
  • Stainless steel fold-down side rails
  • Polyurethane coated stretcher pad
  • Oxygen cylinder holder
  • Four durable castors
  • Single-Direction retractable fifth wheel system, pedals in both sides
  • Central brake system with four brake pedals, in each corner
  • Four IV pole supports around the stretcher with one IV pole included
  • Four protective rubber rolling bumpers
  • Five functions with control pedals in both sides:  Whole bed up/down, Backrest up/down, Leg part up/down , Trendelenburg/Reverse Trendelenburg
  • Pneumatic, lever-activated mechanism to lift/lower the back support
  • One crank for adjusting knee position
  • Ergonomic control with pop-up push handles in the head side and large cross foot handle





Technical Specifications

Physical Specifications

  • Overall Dimensions: 80.19″ x 29.5″ (2037mm x 749mm)

Specifications

  • Bedboard Dimensions: 76.18″ x 24.5″ (1935mm x 622.3mm)

Adjustment

  • Hi-Low: 27″ – 36.18″ (686mm – 919mm)
  • Trendelenburg: ± 12°
  • Back Rest Angle: 0° – 65°
  • Knee Rest Angle: 0° – 45°

Side Rails

  • Dimensions: 17″ x 43.5″ (432mm x 1105mm)

Stretcher Pad

  • Dimensions: 74.5″ x 24.5″ (1892.3mm x 622.3mm)
  • Height: 4″ (10cm)

Wheels

  • Diameter: 8″ (200mm)

Weight

  • Capacity: 250 Kg (550 Lb)
